Single-lever Consolidometer (triplex low & mid pressure) WG

Item Code:WG Features:
  • Description
  • Main Specifications
  • Accessories

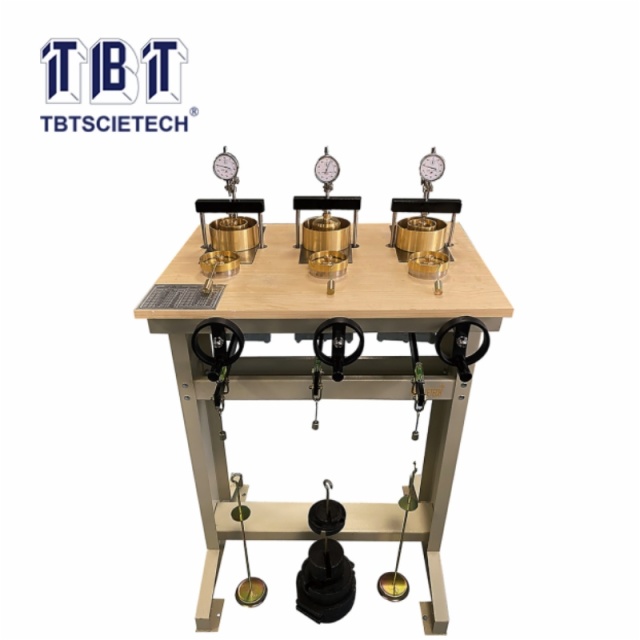

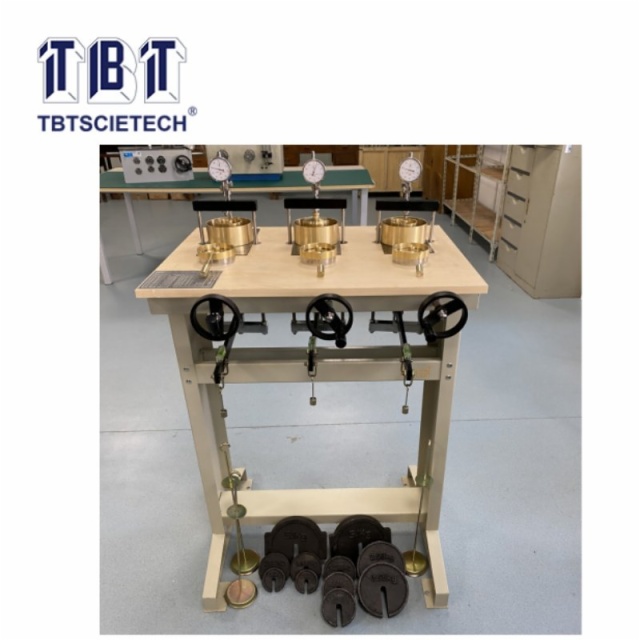

WG Single-lever Consolidometer (triplex low & mid pressure)
The Consolidation Apparatus is used for compression test of the soil, to determine the relationship between deformation and compression of the soil, to calculate the unit settlement ,compression index ,resilient index as well as consolidation coefficient of the soil etc.


Load pressure:
Low pressure:
12.5kPa - 800kPa/30cm2, 12.5kPa - 400kPa/50cm2
Midium pressure:
12.5kPa - 1600kPa/30cm2, 12.5kPa - 800kPa/50cm2
Lever ration:
12 : 1
Consolidation container:
1 x beam, 2 x beams, 3 x beams
Specimen size
30cm2, 50cm2
Instrument structure: steel structure
