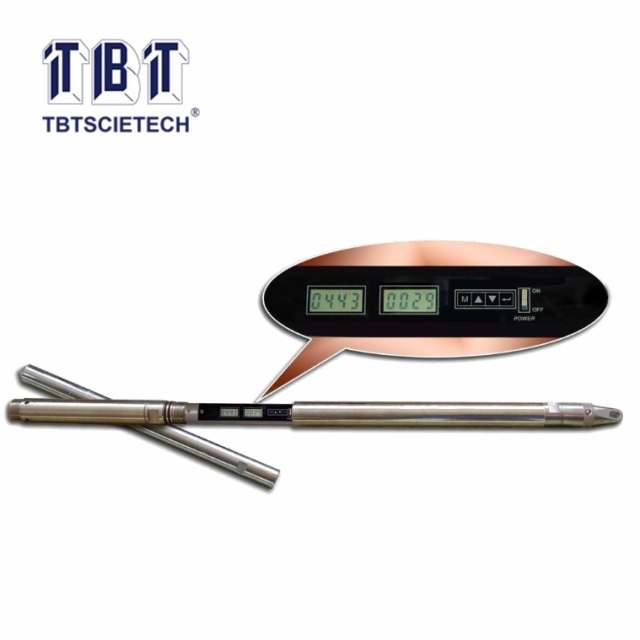

Small-bore Digital Compass Inclinometer KXP-2D

Item Code:KXP-2D Features:
  • Description
  • Main Specifications
  • Accessories
The instrument is designed and made for inclination measurement and direction control during engineering drilling, exploration drilling and directional drilling. Combines sensor, power supply, data processing system, and other controlling unit together, it can independently determine dip angle and azimuth angle of borehole at multi-points. No cable is needed. No mechanical moving parts. It is reliable and with high performance price ratio. It has been widely used in engineering, hydrology, oil field, coal field, and geology.


Measurement depth:
≤1500 m
Measurement range and error:

(1) Dip angle: 050°; ±0.2°;
(2) Azimuth angle: 0360°;
When dip angle is at 13°, its error is ±5.0°;
When dip angle is at 350°, its error is ±3.0°;
Measurement mode:
at fixed points
Delay time:
1180 min
Time interval between measurement points:
160 min
Measurement points:
1100
Data storage
100 groups (Total numbers of measurement points saved is 1000)
Power supply
built in battery to provide power; it can run 32 hours after been charged
Inclinometer probe:
φ40mm×1320mm
Ambient temperature:
055



Any questions, please contact us.

Email: sales@tbt-scietech.com;toni_gu@tbt-scietech.com

Tel: 86-25-8472 1577/8472 1579/8472 1907
