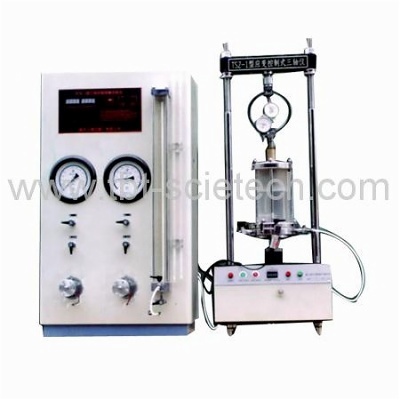

Strain Controlled Triaxial Test Apparatus TSZ-1/TSZ-3

Item Code:TSZ-1/TSZ-3 Features:
  • Description
  • Main Specifications
  • Accessories





Model TSZ-1/TSZ-3
Specimen size:
Ø39.1mm x 80mm
Capacity:
10kN / 30Kn
Platen travel:
70mm
Strain rate:
0.002 - 2.4mm/min. with relative error ≤5% (TSZ-1) infinite variable speed
0.002 - 4.5mm/min. with relative error ≤5% (TSZ-3) infinite variable speed
Confining pressure:
0 - 2.0MPa / back pressure: 0 - 1.0MPa / pore pressure: 0 - 2.0MPa
Volume deformation:
0 - 50ml minimum division: 0.1ml
Power supply:
220VAC 50Hz
