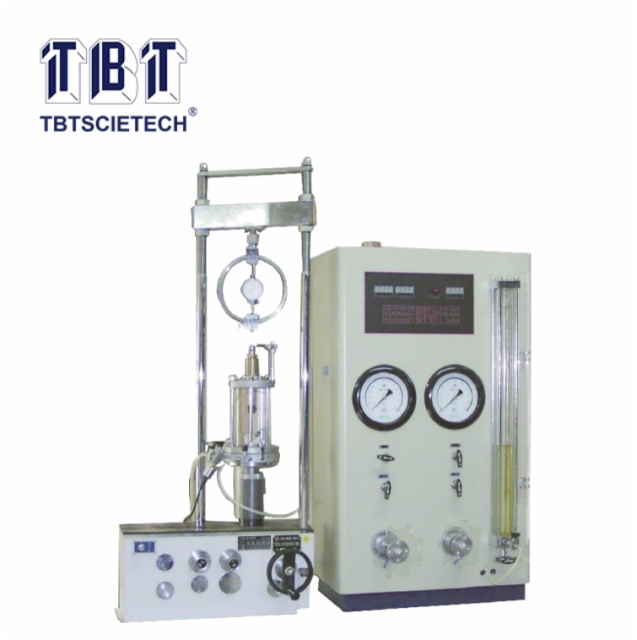

Strain Controlled Triaxial Test Apparatus TSZ30-2.0

Item Code:TSZ30-2.0 Features:
  • Description
  • Main Specifications
  • Accessories
TSZ30-2.0 type desktop traditional triaxial apparatus used for soil samples in axial static load conditions of strength and deformation characteristics. Instrument can undertake not consolidated undrained cut (UU), consolidated undrained cut (CU) and consolidation drainage cut (CD) of triaxial test. This instrument confining pressure is higher, compact construction, simple operation, beardless matchs air compressor and nitrogen bottles, can satisfy the high-rise building and DAMS and other large civil engineering soil test requirements.
Product Model
TSZ30 – 2.0
Ø39.1 x 80mm, Ø61.8 x 125mm
Platen travel
0 – 90mm
Strain rate
0.0024 – 4.5mm/min.                                Mechanical speed with 15 gears
Confining pressure
0 – 2MPa Digital control and display
Back pressure
0 – 0.8MPa Digital control and display
Pore pressure
0 – 2MPa
Volume deformation
0 – 50ml, minimum division: 0.1ml
Power supply
220V ±10% 50Hz
Main unit : 500 x 430 x 1200mm (L x W x H)
Controller : 500 x 500 x 925mm (L x W x H)
