Electric Density Gauge (EDG) TBTEDG-4500

  • Electric Density Gauge (EDG)
  • Electric Density Gauge (EDG)
Item Code:TBTEDG-4500 Features:
  • Description
  • Main Specifications

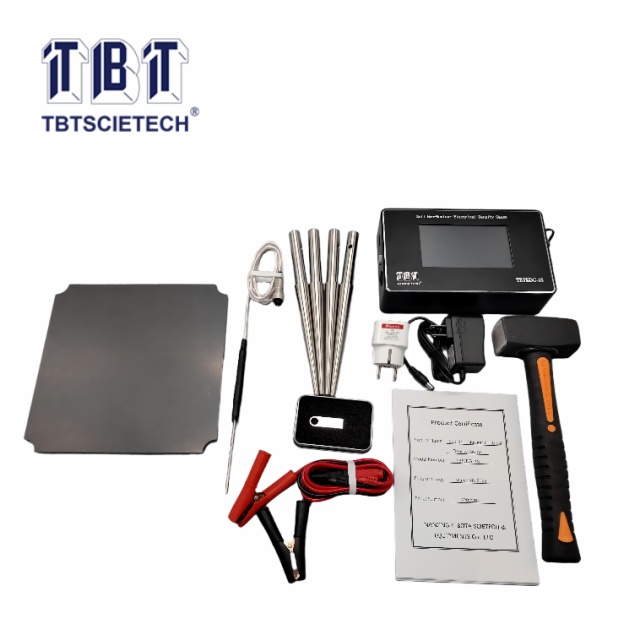

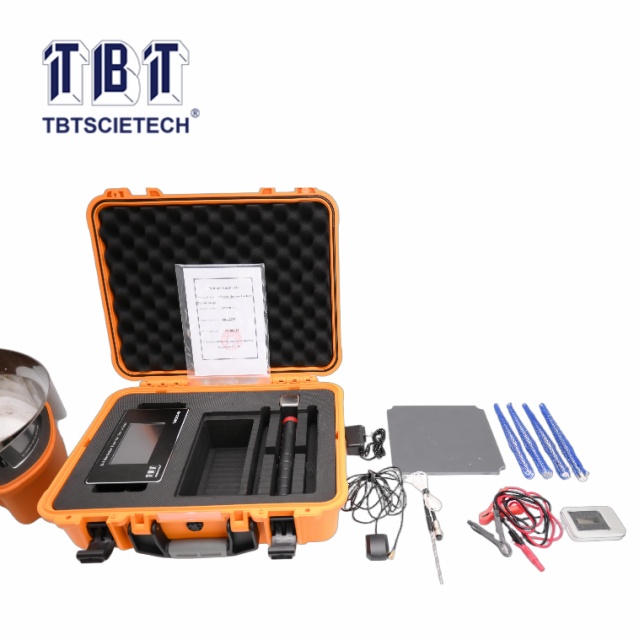

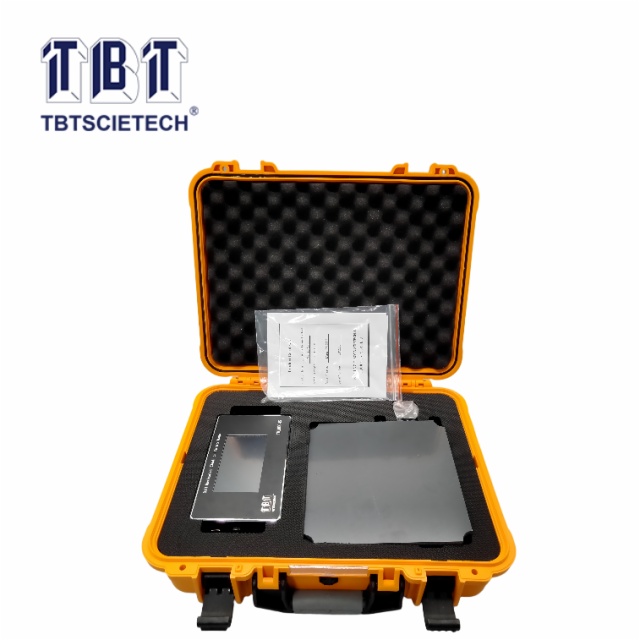

  • Accessories

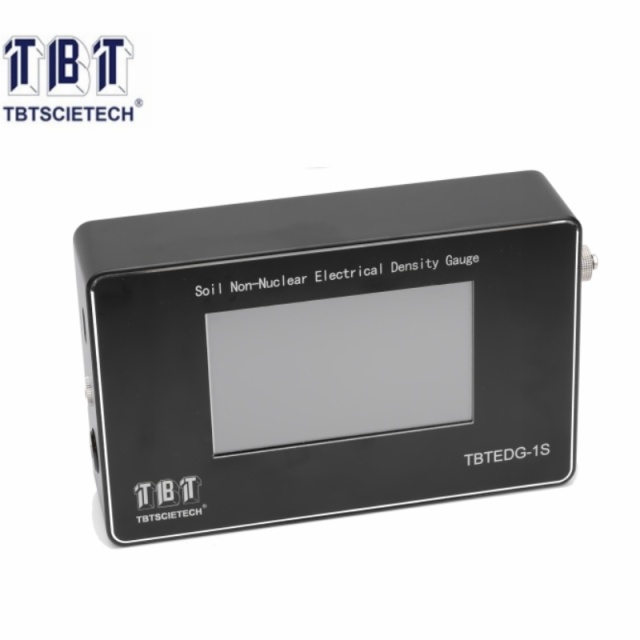

1. TBTEDG-4500 Electric Density Gauge (EDG)  is a non-nuclear alternative for determining the moisture and density of compacted soils used in road beds and foundations. The EDG is a portable, battery-powered instrument

2. When conducting a test, the EDG measures and displays the results for wet and dry density, gravimetric moisture content and percent compaction.

3. It is easy to operate, the EDG can be used as a construction aid to monitor day-to-day compaction operations







Wet density range

standard compacted soil on-situ range

Dry density accuracy

 within 3% of standard test

Moisture content range

standard compacted soil on-situ range

Moisture Content Accuracy

within 2% of standard test

Operating temperature

0-50°C

Operation Environment humidity

5-90%

Power supply

rechargeable 12V,4.0Ah lead acid gel cell

Battery life

approximately 8 hours for full charge

Size (console)

343 × 305 × 152(mm)





Any questions, please contact us.

Email: sales@tbt-scietech.com;toni_gu@tbt-scietech.com

Tel: 86-25-8472 1577/8472 1579/8472 1907
