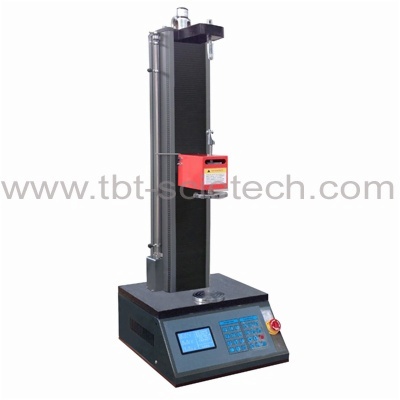

5000N Spring Fatigue Testing Machine TBTTLS-5

Item Code:TBTTLS-5 Features:
  • Description
  • Main Specifications
  • Accessories

TLS-5 Spring fatigue testing machine is mainly used for test fatigue life for various coil springs, disc springs and shock absorbers and spring seals. Widely used in production or application of spring and shock absorber.

Can adjust spring amplitude and frequency according to the technical requirements of spring.Can preset automaticaly shutdown for test frequency.Simple operating, running reliable and stable. All historical data records available for checking.

Item

5000N(Frame stiffness10KN, Four columns)

Test frequency

0-5Hz

Test amplitude

0-250mm (Change of spring displacement 500mm)

Counter capacity

999999999 times

Accuracy of counter shutdown

±1

Maximum outer diameter of specimen

Compression spring Φ80mm,

Tension spring Φ120mm

Test space

1000mm Adjustable (Duplex position)

Motor Power

4.5KW
