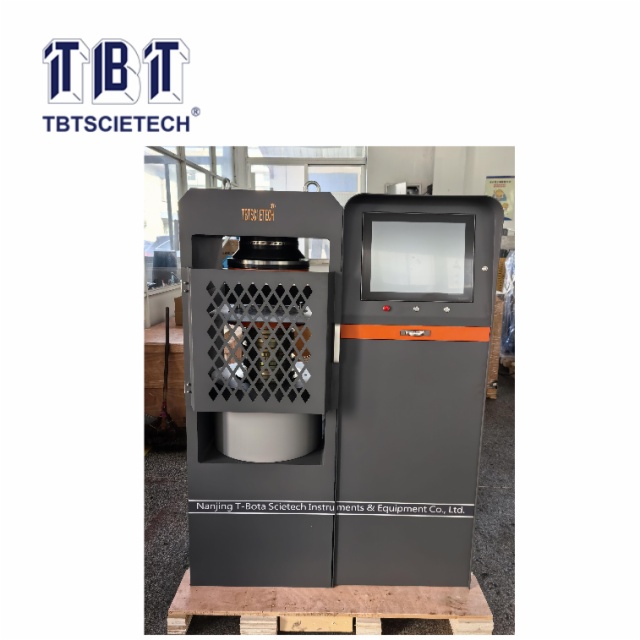

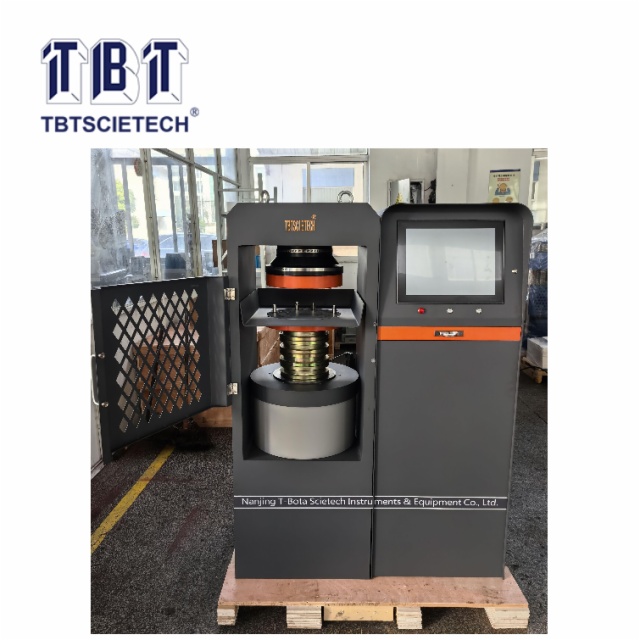

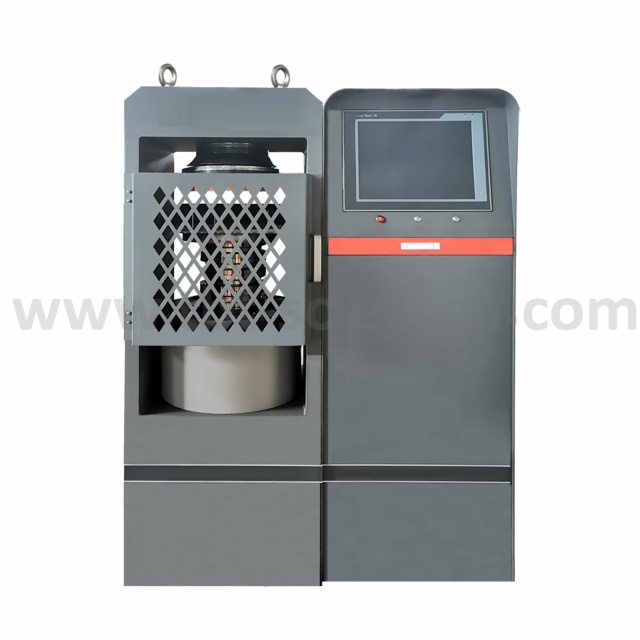

Automatic Compression Testing Machine with PC&Servo Control TBTCTM-3000Z2

  • Automatic Compression Testing Machine with PC&Servo Control
  • Automatic Compression Testing Machine with PC&Servo Control
Item Code:TBTCTM-3000Z2 Features:
  • Description
  • Main Specifications
  • Accessories

The machine is mainly used for concrete compression strength test in lab. It is also applicable for compression strength test to firebrick and other material.



Main Features:

1. Frame structure without bolts connection brings the machine good rigidity and stability.

2. No-base design without oil pipe connection allows user convenient operating.

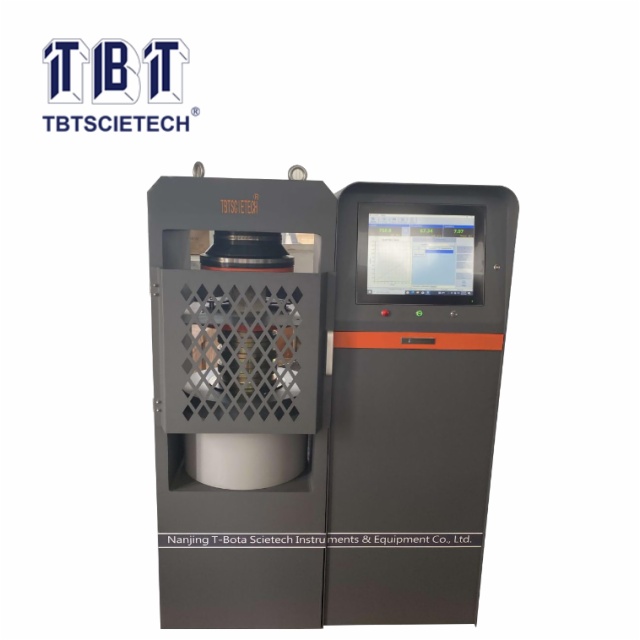

3. Integrated touching screen with keyboard function highlights it’s feature.

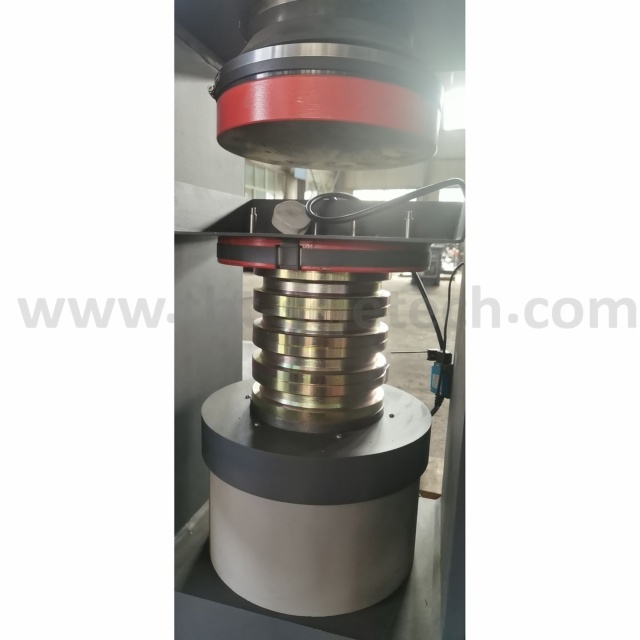

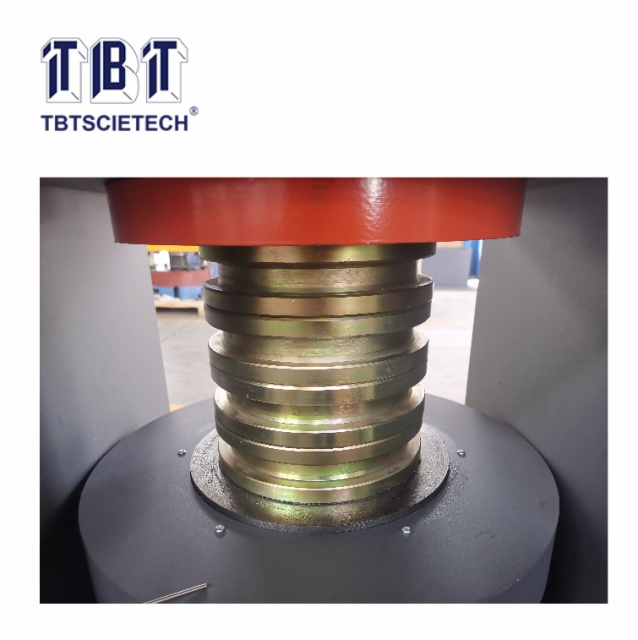

4. Testing space is adjusted by blocks, the testing width space is enlarged allowing concrete elastic modulus operation, dial gauge is read conveniently.



Relative Standard

GB/T2611, GB/T16826-2008, GB/T 50081-2019, JJG1063, ISO、JIS、ASTM、DIN



Adopted patents

Patent ZL 2019 3 0466190.X, ZL 2014 2 0460320.0, ZL 2012 2 0300276.8, ZL 2010 2 0581630.X, ZL 2017 2 1257894.8

Display

touching screen with keyboard function

Max. testing loading

3000KN

Measuring range

60-3000kN

Measuring Range

processing without grading, equivalent to 4 grades

Relative error of loading

≤±1%

Test loading resolution

1/300000FS

Loading constant rate control range

2%-4%FS/s

Speed control accuracy error

≤±2% of the set value

Parallelism of upper and lower beams

<0.02mm

Frame coaxiality

<0.03mm

Frame deformation under Max. loading

<0.05mm

Max. distance between upper and lower platens

320mm

Upper and lower pressure plates size

φ295mm

Parallelism of upper and lower pressing plates

≤0.01mm

Flatness of pressing plates

<0.016mm

Press plate hardness

>55HRC

Pressing plate surface roughness

<0.8μm

Coaxiality of cylinder

<0.02mm

Cylindricity of cylinder

<0.02mm

Oil cylinder roughness

<0.8μm

Gap between cylinder and piston

<0.02mm

Testing space

435*435*110~310mm

Piston movement direction

one-way

Piston moving  max. speed

40mm/min

Piston max. stroke

80mm

Coincidence of ball seat contacting surface

≥90%

Ball seat surface roughness

<0.2μm

System working pressure

40mpa

Value indication accuracy

≤±0.5%, ≤±1%

Motor power

2.2kw

Machine size

1010*590*1330mm

Weight

1550kg
