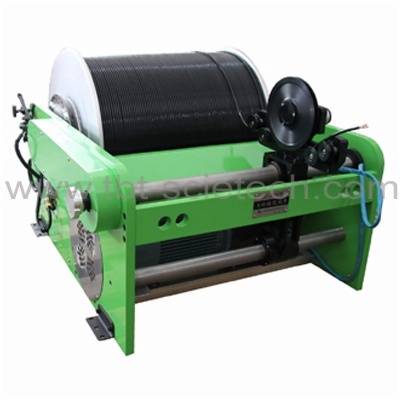

Automatic Drain Winch JC-3000

Item Code:JC-3000 Features:
  • Description
  • Main Specifications
  • Accessories

1. With automatic discharge cable function, through sophisticated combination of mechanical structures can be satisfied with the automatic discharge cable effect.

2. Using SCM control technology, LCD displays,the instrument has a high degree of automation mode, real-time information comprehensive, advanced technical indicators, constant speed control to achieve "DZ / T 0196.8-1997" A level standard.

3. The design idea of multipurpose, versatility, cable decentralization and upgrading with automatic / manual, constant speed control, point measurement / even depth correction, and other functions, suitable for different user logging requirements.

4. Reliable safety performance design, not only has the function of automatic braking suddenly loses power, but when the hand after lifting off, using positive shake rise, the reverse automatic brakes, safe and reliable.

5. Advanced instrument protection function, has the running process of the pull over gauge automatic parking protection function, ensure the underground probe tube and the safety of this instrument.



Speed range

0 m / min ~ 30 m / min

Depth range

0 m ~ 3000 m

Control

integrated intelligent control panel

Constant speed range

0.5 m / min ~ 20 m / min, error ± 5%

Display range

0m ~ 9999.99 m, error ≤ ± 0.4 ‰

Control

automatic, manual, calibration

Control direction

up, down

Measurement

point measurement, continuous

Cable specifications

Fitted / plastic cable optional

Working temperature

-10 ℃ ~ 70 ℃

Power Supply

AC (220 ± 10%) V, 50Hz

Motor power

2200W

Net weight

155kg (without cable)

Volume

Host        1040mm×880mm×640mm (length × width × height)



Control box   400mm×230mm×290mm (length × width × height)
