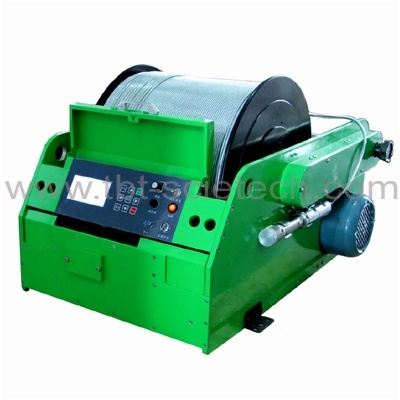

Automatic Drain Winch JC-2000

Item Code:JC-2000 Features:
  • Description
  • Main Specifications
  • Accessories

1. With automatic discharge cable function, through a combination of precision parts can be satisfied with the automatic discharge cable effect.

2. Using SCM control technology, comprehensive real-time information, advanced technical indicators, the constant speed control to achieve "DZ / T 0196.8-1997" A level standard.

3. Decentralization and upgrade of the cable with automatic / manual, constant speed control, point measurement / continuous measurement, depth correction function.

4. With automatic braking function of a power outage, and when the hand after lifting off, using a positive shake rise, the reverse automatic braking system, safe and reliable.

5. With the running process of the pull over the automatic parking protection function it can ensure the safety of the underground probe tube and the instrument.





Speed range

0 m / min ~ 30 m / min

Depth range

0 m ~ 2000 m

Control

integrated intelligent control panel

Constant speed range

0.5 m / min ~ 20 m / min, error ± 5%

Display range

0m ~ 9999.99 m, error ≤ ± 0.4 ‰

Control

automatic, manual, calibration

Control direction

up, down

Measurement

point measurement, continuous

Cable specifications

2000 meters Cable armor

Working temperature

-10 ℃ ~ 70 ℃

Power Supply

AC (220 ± 10%) V, 50Hz

Motor power

1500W

Net weight

140kg (without cable)

Total weight

310kg (including cable)

Volume

1020mm × 700mm × 550mm (length × width × height)
