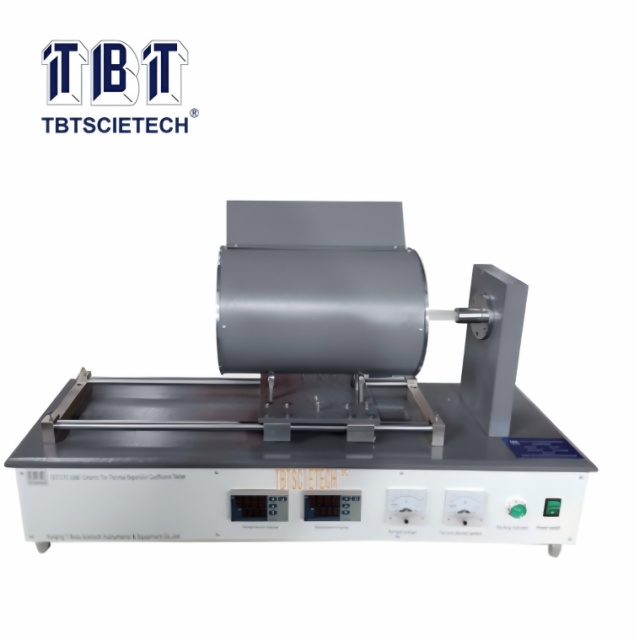

Ceramic Tile Thermal Expansion Coefficient Tester TBTTCPZ-1000

Item Code:TBTTCPZ-1000 Features:
  • Description
  • Main Specifications
  • Accessories

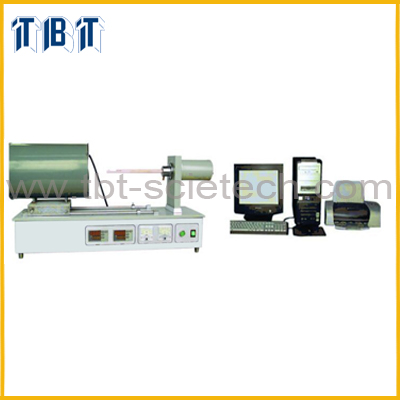

This machine is used to test the expansion and shrinkage features of   metal, ceramic, glaze material, fire-resistance material and other non-metallic materials during baking. It is also suitable for GB/T3810.8-2006 、ISO 10545.8-1995 tile thermal expansion coefficient testing. CPZ intelligent expansion instrument can auto control the temp. , record, save and print datas, temperatures and the expansion coefficient curve. The whole test will be finished by the computer.



Max stove temp

1000℃

The bending scope

±2.5mm

Sensitivity

≤0.1um

Temp. controlling accuracy

±1℃

Sample size

Ф6~10×50mm、10×10×50mm

Power supply

220V,2KW
