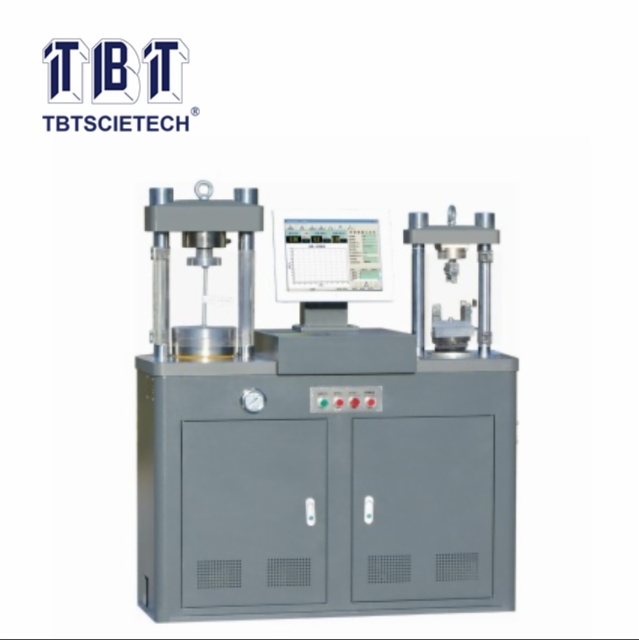

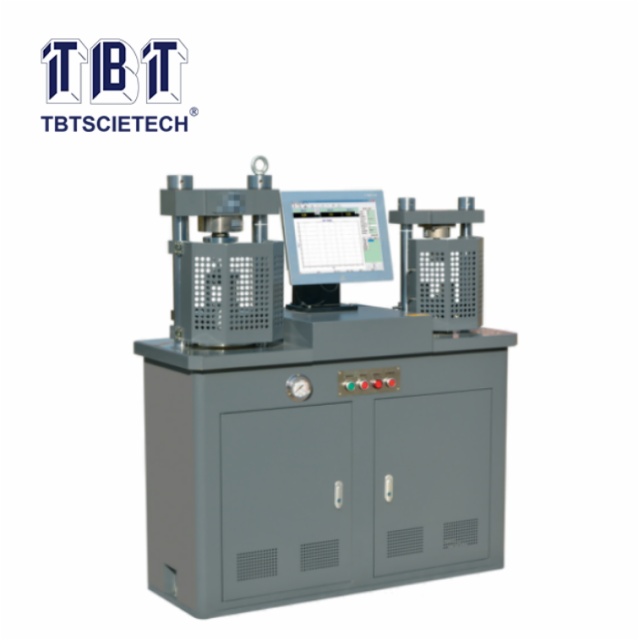

Compression & Flexure Testing Machine TBTCTM-300BS

Item Code:TBTCTM-300BS Features:
  • Description
  • Main Specifications
  • Accessories

This series of products hydraulically loaded, using electro-hydraulic servo technology for cement, concrete and other materials for compressive and flexural testing under nominal test force,can accordance with the appropriate standards and meet the standards set loading rate loading rate control targets, with load, time and test curve dynamic display and control functions in a timely manner and the maximum test force function.

This series of products on a computer equipped with monitoring software can automatically strike a compressive strength test data and automatically print out the complete test report and test curves.

Model

TBTCTM-300BS

Max compression capacity (KN)

300

Max flexure capacity (KN)

10

Flexure Compression space(mm)

180

Flexure piston stroke (mm)

60

Indication accuracy

1

Compressive compression space(mm)

180

Piston stroke(compression)(mm)

80

Fixed upper platen dimensions(mm)

Φ108φ60

Ball - type upper platen dimensions(mm)

Φ170

Under platen dimensions(mm)

Φ205

Host dimensions(mm)

1160*500*1400

Power (KW)

0.75

Weight (kg)

540
