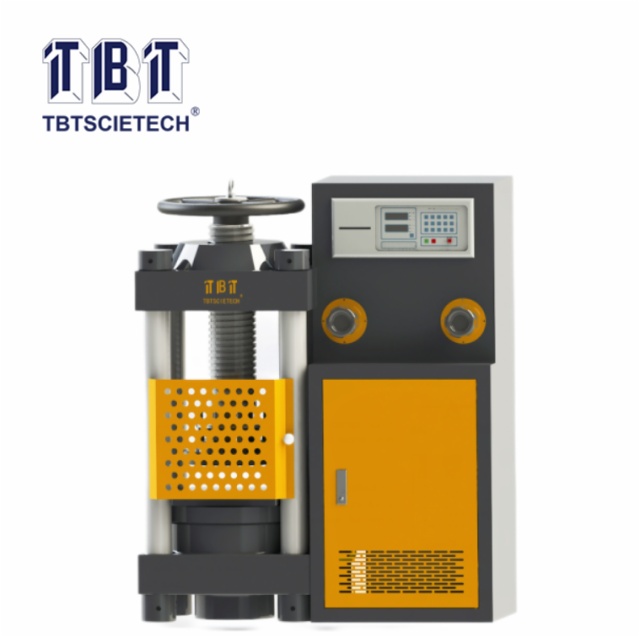

Compression Testing Machine with Digital Display TBTCTM-1000/TBTCTM-2000

Item Code:TBTCTM-1000/TBTCTM-2000 Features:
  • Description
  • Main Specifications
  • Accessories

The testing machine is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete; it is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed

Model: TBTCTM-1000 TBTCTM-2000

Maximum Capacity:

1000 kN

2000 kN

Measuring Range

0-1000 kN

0-2000 kN

Relative Error

±1%

±1%

Platen dimension

220mm×280 mm

220mm×280 mm

Max. Vertical clearance between platen

330 mm

330 mm

Maximum travel of piston

40 mm

40 mm

Diameter of piston

Ф250 mm

Ф250 mm

Rated pressure of oil pump

40 Mpa

40 Mpa

Power supply

220VAC 750W

220VAC 750W



1. Digital Display Controller

2. Oil Flow Control Valve

3. Oil Return Valve

4. Oil Pump

5. Motor

6. O-ring
