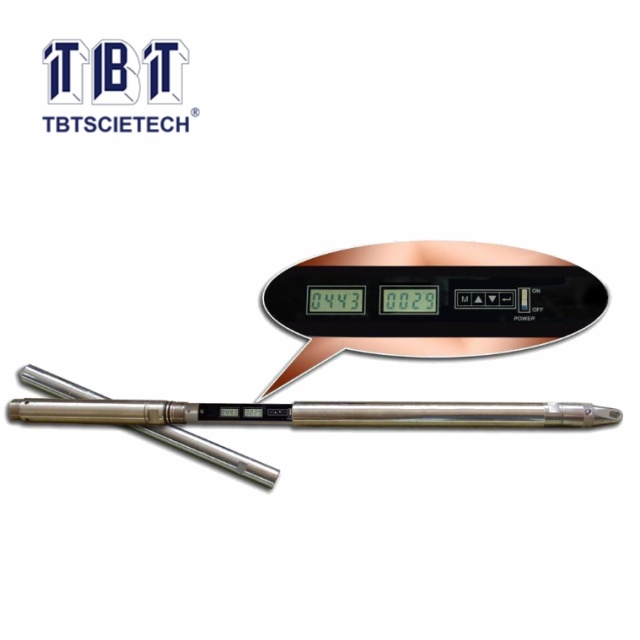

Digital Compass Inclinometer KXP-2D2

Item Code:KXP-2D2 Features:
  • Description
  • Main Specifications
  • Accessories

1. The biggest characteristic of the instrument is to provide independent research and development of supporting software,, and computer communication can be realized after displaying three-dimensional projection and spatial trajectories and printing, Convenient user read figure ,sentenced map, or for further analysis and research.

2. Using high-precision 24-bit A / D, gravity accelerometer and three-dimensional magneto-resistive sensors, measurement data reliability and high accuracy.

3. Application of digital timing and digital storage technology, a maximum of 100 points can be measured at a time, and can save 1000 measurement data.

4. The use of seismic design, seismic capability of the instrument, the overall performance of the index much higher than conventional mechanical compass inclinometer instruments.

Low price, high accuracy, no cable, the latest technology research crystallization of the oblique technology.



Inclinometer depth

≤1500 m

Measuring range and error

                  Angle measuring range

0 ~ 50 °, measurement error: ± 0.2 °

                 Azimuth measuring range

0 ~ 360 °

                 When the angle 1 ~ 3 °, the measurement error: ± 5.0 °

                 When the apex angle of 3 ~ 50 °, the measurement error: ± 3.0 °

Measurement

measuring point

The delay time measuring

(1 to 180) minutes adjustable

The measured time interval

(1 to 60) and minutes adjustable

Measurement points

(1 - 100)

 Data sets can be saved

100 groups (measuring point total storage number 1000

Power supply

Built-in lithium battery, a charge can work for 32 hours (new battery)

Inclinometer probe Overall

Φ40mm × 1320mm

Environmental temperature

0 ℃ ~ 55 ℃
