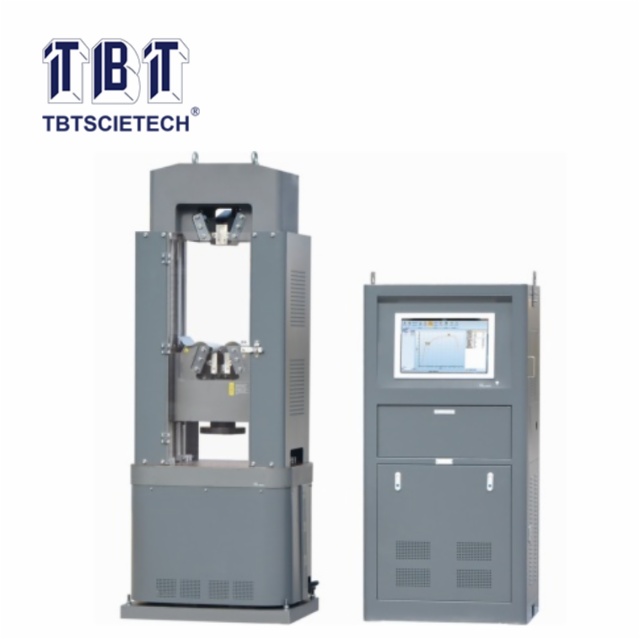

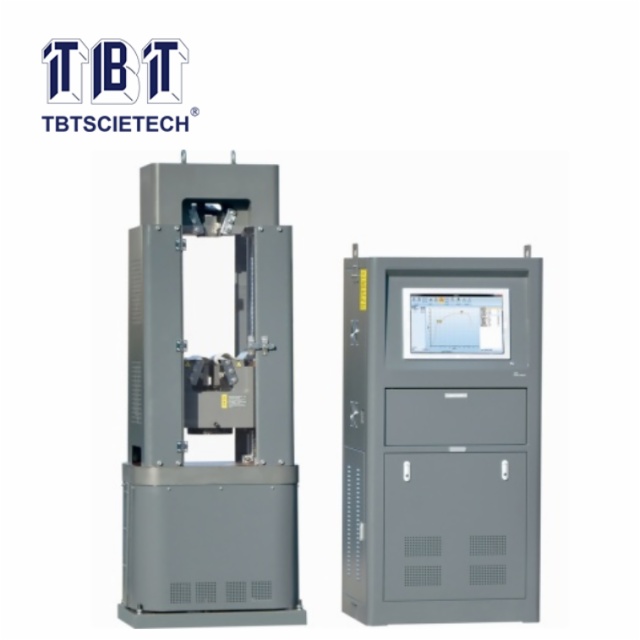

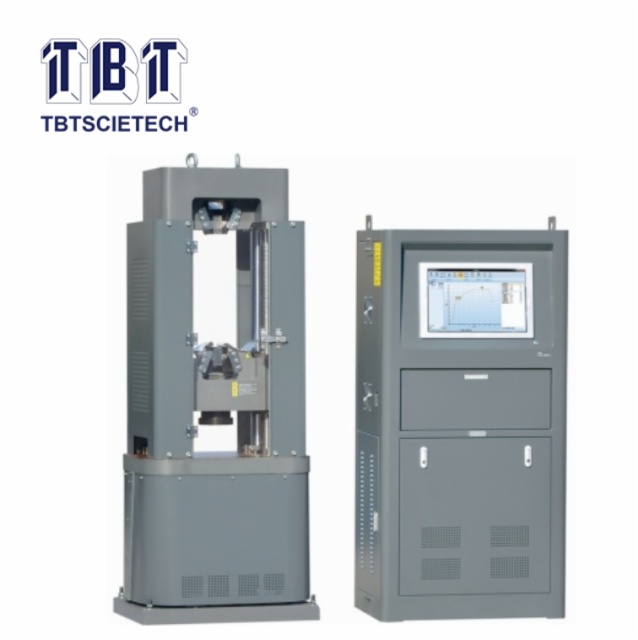

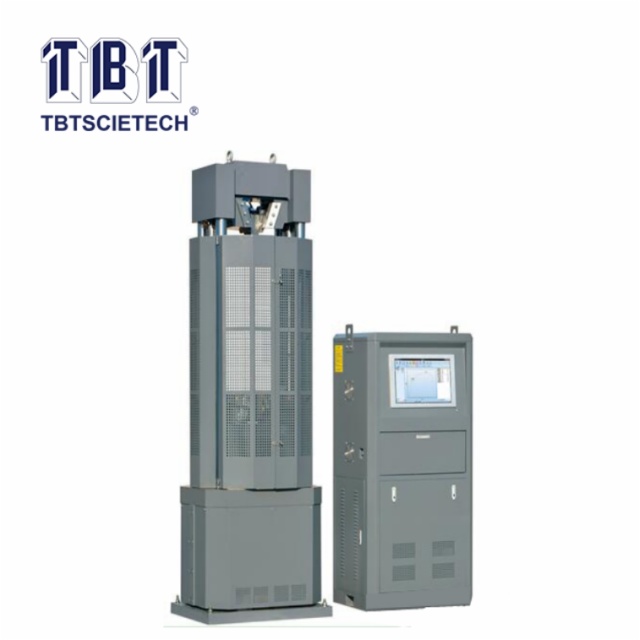

Universal Testing Machine with PC&Servo Control TBTUTM--100CSID/TBTUTM--300CSID/TBTUTM--600CSID/TBTUTM--1000CSID

Item Code:TBTUTM--100CSID/TBTUTM--300CSID/TBTUTM--600CSID/TBTUTM--1000CSID Features:
  • Description
  • Main Specifications
  • Accessories

This series of products are mainly used for metal, nonmetal materials tensile, compression, bending, shear and other mechanical properties.

This series of products for the fuel tank under the home, four column, double screw, double space frame structure, tension and compression space spacing electrically adjustable, hydraulic automatic way fixture clamping, gripping, reliable, and convenient.There are built-in beam coil spring buffer device, which can effectively eliminate the transmission gap between the screw and nut, and play a good role in the sample buffer pull off. Top of the platform configuration and high toughness fence, the space between the test and the formation of the operator isolation, can effectively guarantee the safety of the operator.

This series of products and control systems using high-speed Ethernet communications interface to communicate with the computer, with a variety of control methods load, displacement, stress, strain, and to achieve control in the form of a smooth handover.Test data using standard database management and discretionary access, enabling test data and re-analysis of the curve, and then edit the local amplification and data can automatically determine the mechanical properties of the material, you can print out the complete test report and curves and provides network data interface.

Model

TBTUTM-300CSID

TBTUTM-600CSID

TBTUTM-1000CSID

TBTUTM-2000CSID

Max.Capacity(KN)

300

600

1000

2000

Accuracy class

Lever 1(0.5)

Max distance of compression plate(mm)

600

600

600

650

Max distance of tensile

700

700

700

800

Piston stoke(mm)

200

200

200

250

Diameter of round specimen(mm)

Φ10-φ32

Φ13-φ40

Φ14-φ45

Φ20-φ70

Diameter of flat specimen(mm)

0-20

0-20

0-40

0-50

Maximum distance of bending test(mm)

300

300

300

/

Load control

Computer automatically

Specimen clamping method

Hydraulic

Demensions of host(mm)

800*620*1850

800*620*1870

800*620*1900

900*700*2250

Demensions/Weight of Oil source cabinet

800*600*1600mm/300kg

Power(KW)

2.2

2.2

2.2

3.5

Weight of host(kg)

1850

2550

3200

5000
