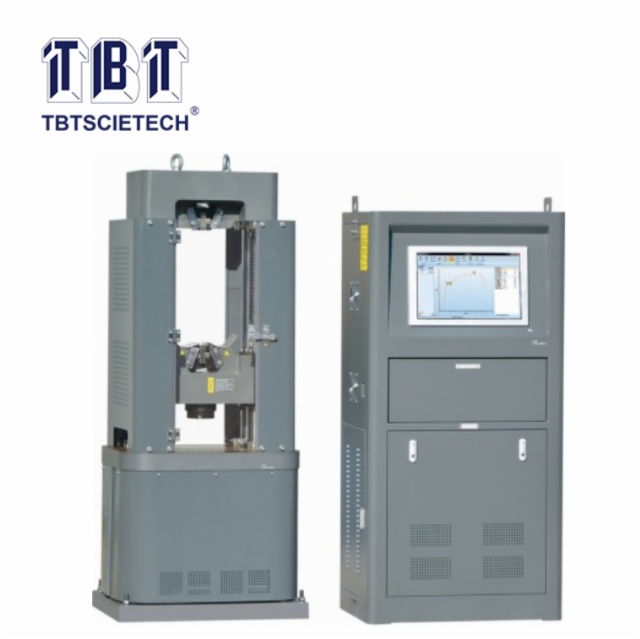

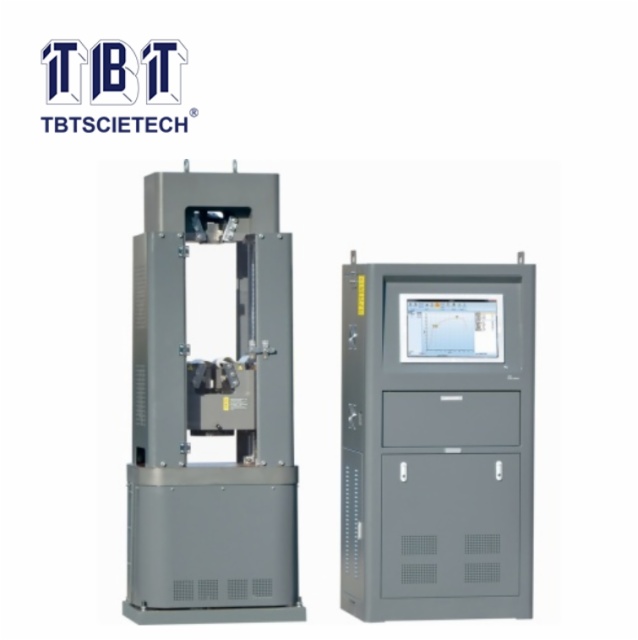

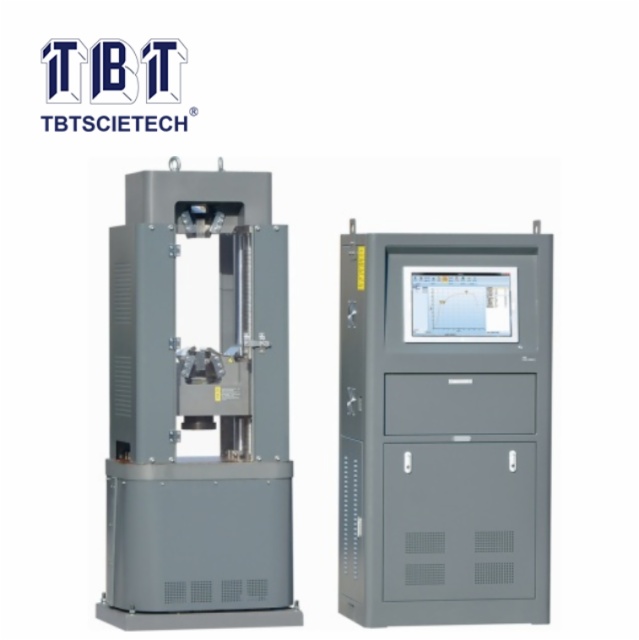

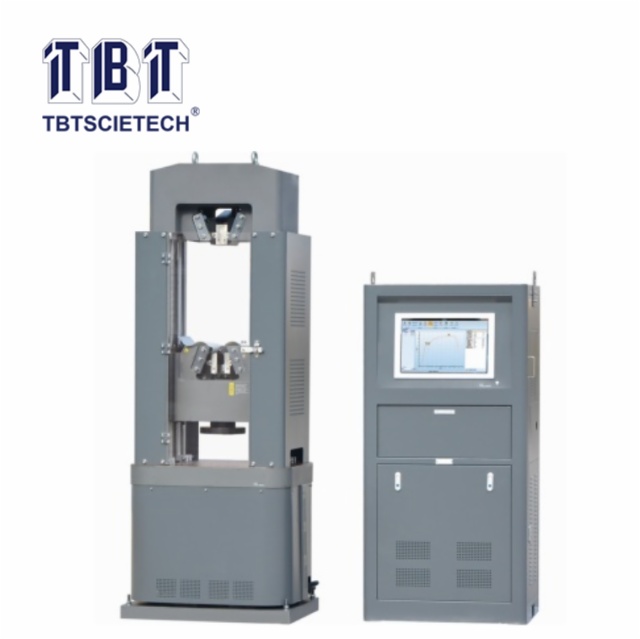

Universal Testing Machine with PC&Servo Control TBTUTM-100CSI/TBTUTM-300CSI/TBTUTM-600CSI/TBTUTM-1000CSI

Item Code:TBTUTM-100CSI/TBTUTM-300CSI/TBTUTM-600CSI/TBTUTM-1000CSI Features:
  • Description
  • Main Specifications
  • Accessories

This series of products are mainly used for metal, nonmetal materials tensile, compression, bending, shear and other mechanical properties.

This series is set for the next tank, four, twin-screw, double space frame structure, tensile and compression space spacing electrically adjustable clamping mode for manual clamping.There are built-in beam coil spring buffer device, which can effectively eliminate the transmission gap between the screw and nut, and play a good role in the sample buffer pull off. Top of the platform configuration and high toughness fence, the space between the test and the formation of the operator isolation, can effectively guarantee the safety of the operator.

Integrated product configuration Qintai oil source cabinets, built-in import Mazu Qi pump output stability, low noise, high oil source cabinet integration, small footprint, and the operation, easy observation.

This series of products and control systems using high-speed Ethernet communications interface to communicate with the computer, with a variety of control methods load, displacement, stress, strain, and to achieve control in the form of a smooth handover.Test data using standard database management and discretionary access, enabling test data and re-analysis of the curve, and then edit the local amplification and data can automatically determine the mechanical properties of the material, you can print out the complete test report and curves and provides network data interface.

Model

TBTUTM-100CSI

TBTUTM-300CSI

TBTUTM-600CSI

TBTUTM-600CSIG

(steel strand)

TBTUTM-1000CSI

TBTUTM-1000CSIG

(steel strand)

Max.Capacity(KN)

100

300

600

600

1000

1000

Accuracy class

Lever 1(0.5)

Max distance of compression plate(mm)

500

600

600

1100

600

900

Max distance of tensile

600

700

700

1100

700

900

Piston stoke(mm)

200

200

200

200

200

200

Diameter of round specimen(mm)

Φ6-Φ22

Φ10-Φ32

Φ13-Φ40

Φ13-Φ40

Φ14-Φ45

Φ14-Φ45

Diameter of flat specimen(mm)

0-15

0-20

0-20

0-20

0-40

0-40

Maximum distance of bending test(mm)

300

300

300

300

300

300

Load control

Computer automatically

Specimen clamping method

Hydraulic

Demensions of host(mm)

800*620*1850

800*620*1900

800*620*2000

800*620*2300

900*700*2300

900*700*2700

Demensions/Weight of Oil source cabinet

800*600*1600mm/300kg

Power(KW)

2.2

2.2

2.2

2.2

2.2

2.2

Weight of host(kg)

1450

1600

1900

2050

2600

2800
