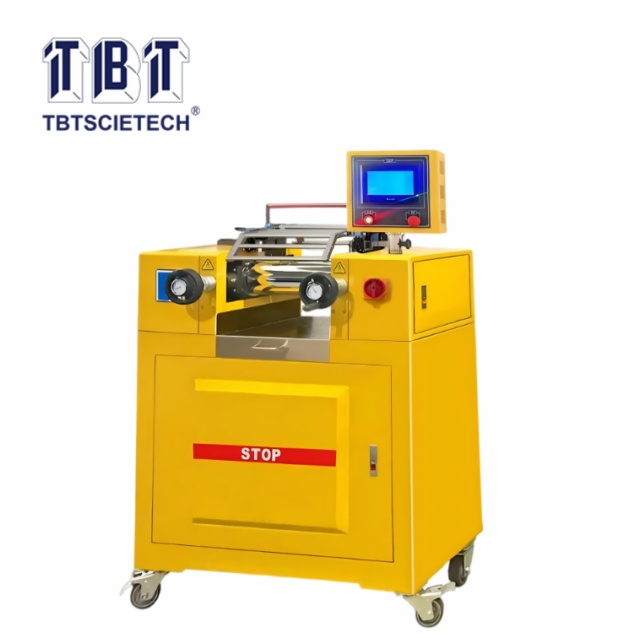

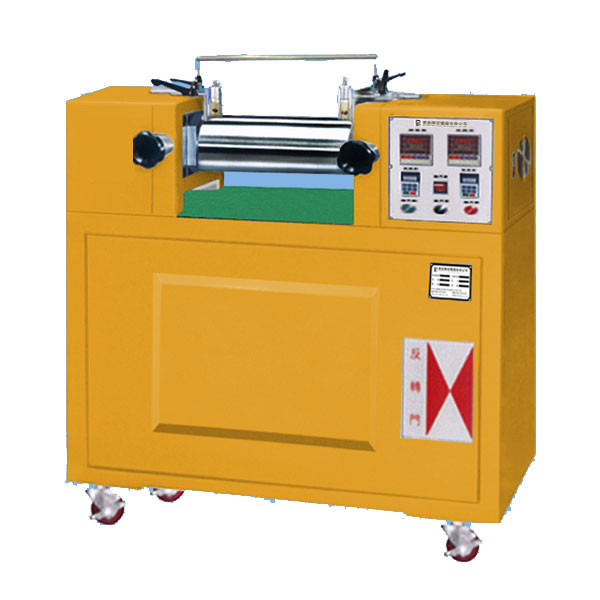

Lab Double-Roll Mill (Electric Heating Type) TBTRM-8175A

Item Code:TBTRM-8175A Features:
  • Description
  • Main Specifications
  • Accessories

This experimental mill can be applied to the mixing and scattering of engineering plastic raw materials, color masterbatch material and other polymers. The double roll mirror surfaces of this machine are plated by chrome. It adopts special for electric heating to make the temperature of roller surface uniform.

Roller space can reconcile three-dimensional security devices, safe and reliable, advanced and practical.



Room temperature to 300℃

Temperature controller

High precision of LED digital display, can be set up and display of temperature

Heating method

Electro-thermal tube

Heating time

About 30min from room temperature to 200℃

Cooling system

Water cooling

Roller size    Ø×L

Ø120×L320mm or Ø150×L320mm

Rotate ratio

1: 1. 27

Roller space

0.1 to 10mm adjustable

Roller hardness

HRC 60

Safety protection

stop while pulling rod, inversion with knees and other security devices

Volume   W×D×H

Around990 × 390 × 1150mm(without the adjustable electric control box)

Power supply

AC380V,3 phase


About 375kg
