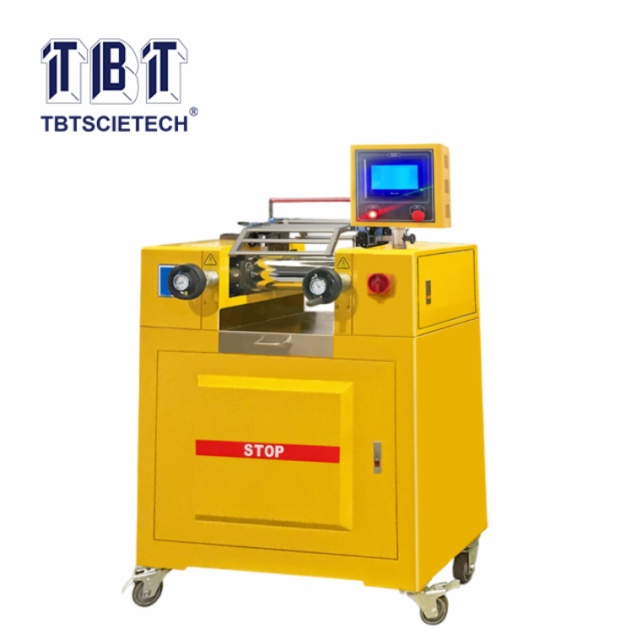

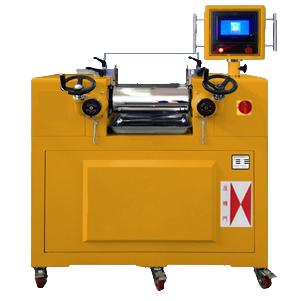

Lab Double-roll Mill (PLC Control System) TBTRM-8175PLC

Item Code:TBTRM-8175PLC Features:
  • Description
  • Main Specifications
  • Accessories

This experimental mill can be applied to the mixing and scattering of engineering plastic raw materials, color masterbatch material and other polymers. The double roll mirror surfaces of this machine are plated by chrome. It adopts special for electric heating to make the temperature of roller surface uniform.

Roller space can reconcile three-dimensional security devices, safe and reliable, advanced and practical.


Article No.

TBTRM-8175A/AL/B/BL/C can be changed into PLC Control System


Normal temperature

Temperature controller

PLC programmable color touch screen, man-machine interface system, all the parameters can be set arbitrary and control

Roller size    Ø×L

Ø120×L320mm or Ø150×L320mm

Rotate ratio

1: 1. 27

Roller space

0.1 to 10mm adjustable

Safety protection

stop while pulling rod, inversion with knees and other security devices

Volume   W×D×H

Around990 × 530 × 1150mm(without the adjustable electric control box)

Power supply



About 485kg
