Remote Digital Inclinometer KXP-2E

Item Code:KXP-2E Features:
  • Description
  • Main Specifications
  • Accessories

 The instrument increases the function of remote control, without timing, measuring at any time, the large capacity storage and other functions on the basis of the KXP-2D digital inclinometer.

    The instrument is designed to meet the non-magnetic area of engineering drilling, exploration drilling, directional drilling, etc. inclinometer and directional control during the construction and design of the measuring point digital compass inclinometer, measurable drilling angle, azimuth .The instrument can be widely used in engineering, hydrology, oil, coal, geology and other fields.

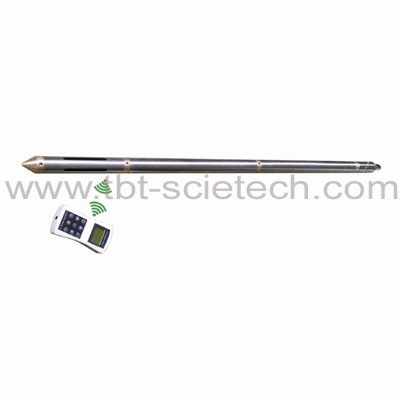

The instrument consists of a probe tube and a handheld controller. designed to be portable; inclinometer probe integrated sensors, power supply, data acquisition, storage, computing, transfer function, hand-held controller includes setting, measurement, transmission, storage, data processing function as one, to fixed-point measurement hole vertex angle, azimuth angle, instrument, simple operation, suitable for use in field operations.



Inclinometer depth

≤1500 m

arameter range and accuracy

                   Angle measuring range

0 ~ 50 °

                 Angle measurement error

≤0.1 °

                 Azimuth measuring range

0 ~ 360 °



 ≤5.0 ° (when the angle at 1 ~ 3 °)



 ≤3.0 ° (when angle 3 ~ 50 °)

Inclinometer probe tube diameter

Φ40 mm × 1270mm

Hand-held controller Dimensions

78 mm × 155 mm × 38mm

The use of environmental temperature

                       Inclinometer probe

0 ℃ ~ 75 ℃

                     Hand-held controller

-5 ℃ ~ 50 ℃

Pressure

≥20MPa

Power

underground instruments and handheld controller are built-in lithium battery

Measurement

without need to set in advance, the downhole instrument can measure in place; can store about 250 sets of data or 1200 points of measurement data

Data transmission

wireless transmission, remote control within a distance of 5 meters, smart switches, without opening the probe to work properly
