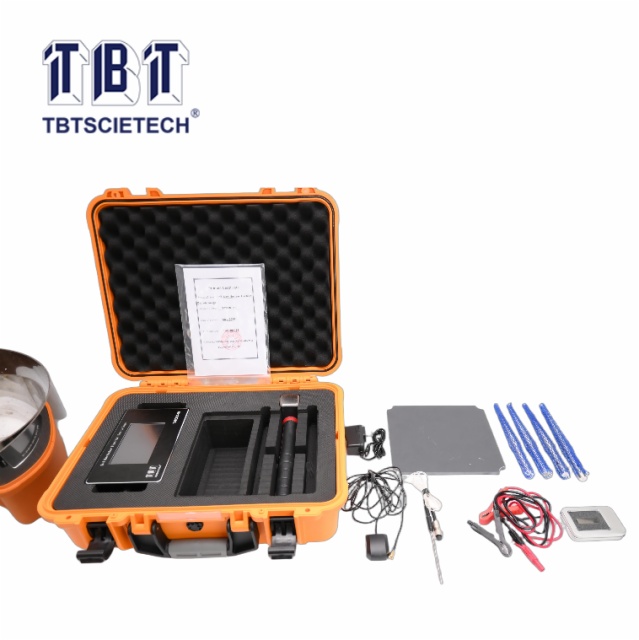

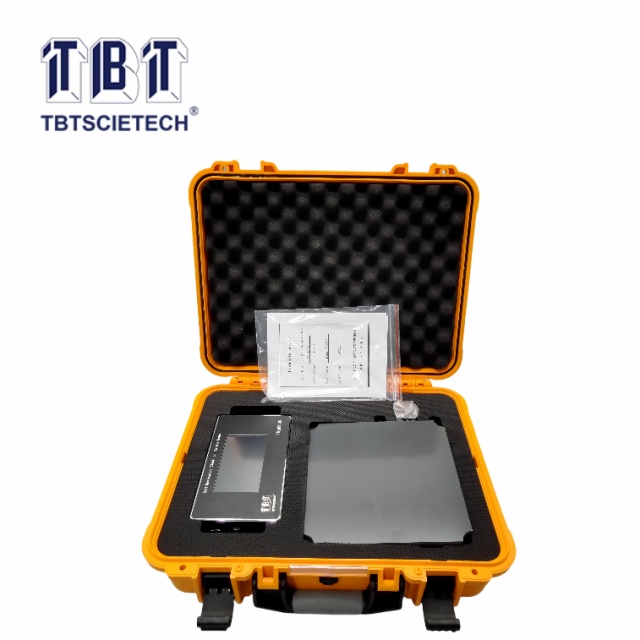

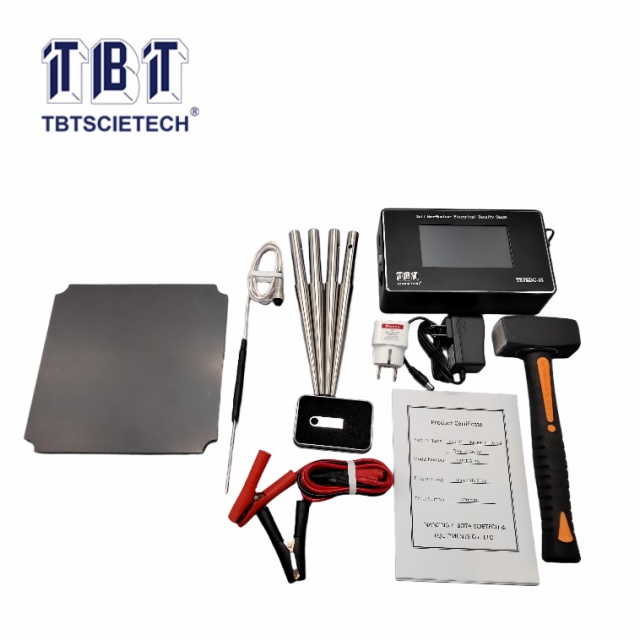

Item Code:TBTEDG-1S Features:Soil Non-Nuclear Electrical Density Gauge (EDG) Model: TBTEDG-1S
  • Description
  • Main Specifications
  • Accessories

TBTEDG-1S soil non-nuclear density gauge is for in field test,  is an alternative nuclear defector that measures physical properties of subgrade and foundation compacted soil. It is a touch screen displayed and battery-powered portable instrument that can be used anywhere in the world without problems related to nuclear safety. It can test dry & wet density, water content, and percent of compaction. It is easy to operate, can be used as a monitor for daily compaction operations. It’s high quality performance and accurate measurement results are comparable to traditional measurement methods such as nuclear density measurement, sand filling, or drying method.

Technical specification:

1. Density range: standard compacted soil on-site range

2. Wet density accuracy:  0~ 3% of standard test

3. Moisture content accuracy: 0~2% of standard test

4. Measuring depth: 30CM

5. Operating temp. 0-50°C

6. Operating humidity: less than 90%

7. Power supply: 12V Lithium Battery which can use continuously for approx. 20hrs.

8.  With built-in sensor, with higher sensitivity and better stability.

9, 4.3" touch screen display test results in 2-3 minutes,  test results are accurate and repeatable.

10, U disk for data transmission.

11, With optional GPS function, can satellite positioning of detection points, connect with local management software, remote data transmission monitoring, etc.
