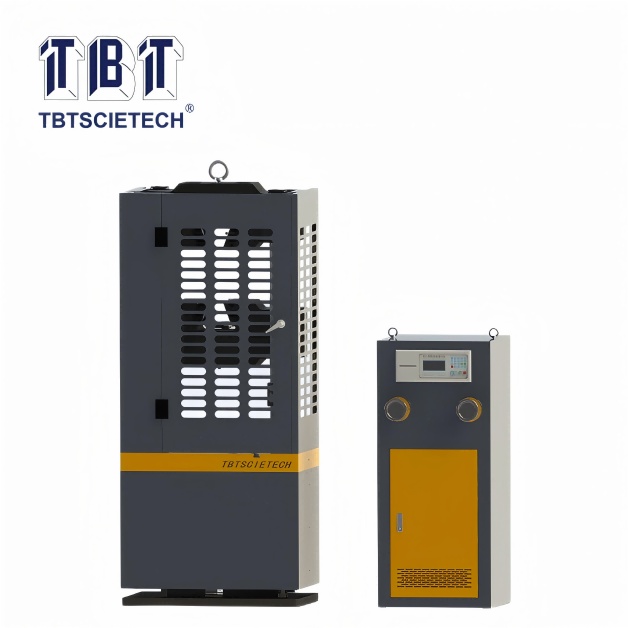

Universal Testing Machine with LCD digital display TBTUTM-100B/TBTUTM-300B/TBTUTM-600B/TBTUTM-1000B

Item Code:TBTUTM-100B/TBTUTM-300B/TBTUTM-600B/TBTUTM-1000B Features:
  • Description
  • Main Specifications
  • Accessories

The testing machine is mainly designed for metal of tension test, compression test and bending test, also for non-metal of compression test, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.

It is featured with hydraulic loading, electronic force measurement, the load, displacement and loading speed display, peak force value maintained, overload protection and test data protection when the power supply is cut off temporarily. The test data can be processed automatically and printed out.



Model TBTUTM-100B TBTUTM-300B TBTUTM-600B TBTUTM-1000B
Max capacity 100KN 300KN 600KN 1000KN
Max. tension space 0-100 KN 0-300 KN 0-600 KN 0-1000 KN
Grade of machine Grade 1 Grade 1 Grade 1 Grade 1
Load maintained time ≥30s ≥30s ≥30s ≥30s
Flat specimen thickness 0~15mm 0~15mm 0~15mm 0~40mm
Round specimen clamp diameter D6~22mm D8~32mm D13~40mm D20~60mm
Piston stroke 150mm 150mm 200mm 200mm
Weight around 600KG around 1200KG around 1700KG around 2200KG
Size

665mm×485mm×1536mm

550mm×600mm×1270mmm

740mm×460mm×1970mm

550mm×600mm×1270mmm

880mm×600mm×2020mm

550mm×600mm×1270m

960mm×620mm×2150mm

550mm×600mm×1270mm





1. O-ring

2. Oil flow control valve

3. Oil return valve

4. Oil pump

5. Motor

6. LCD display controller
