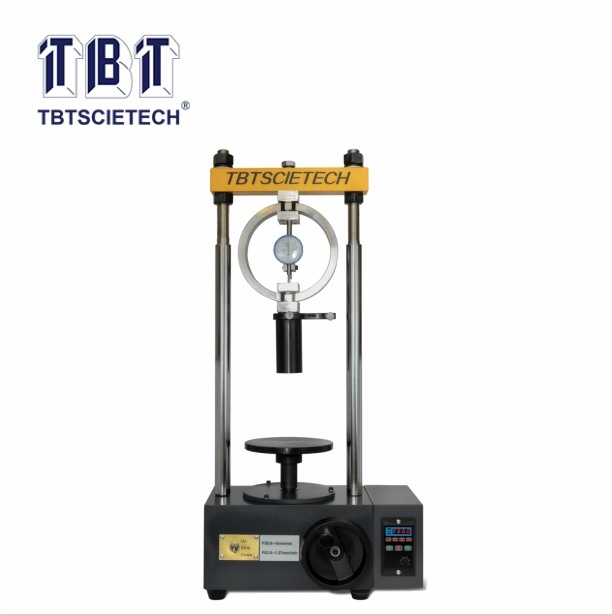

Value Test Apparatus TBTCBR-2

Item Code:TBTCBR-2 Features:
  • Description
  • Main Specifications
  • Accessories

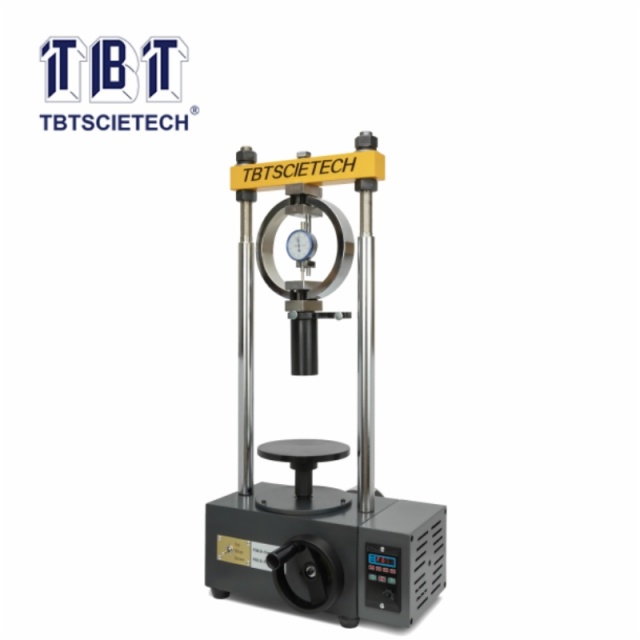

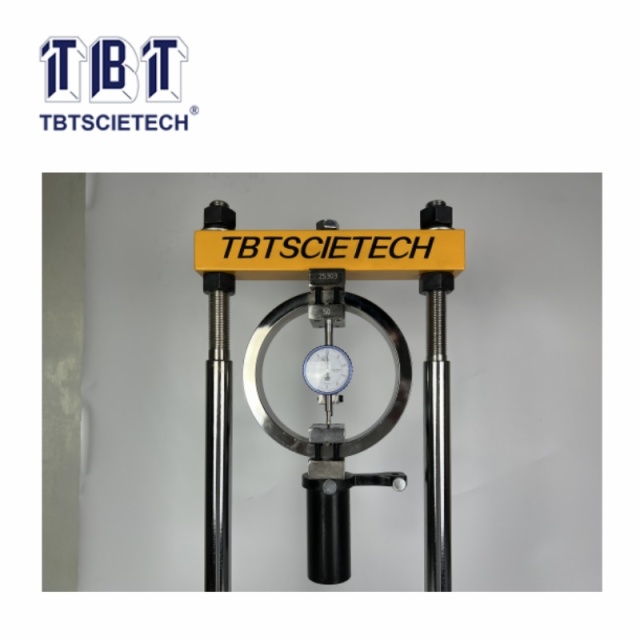

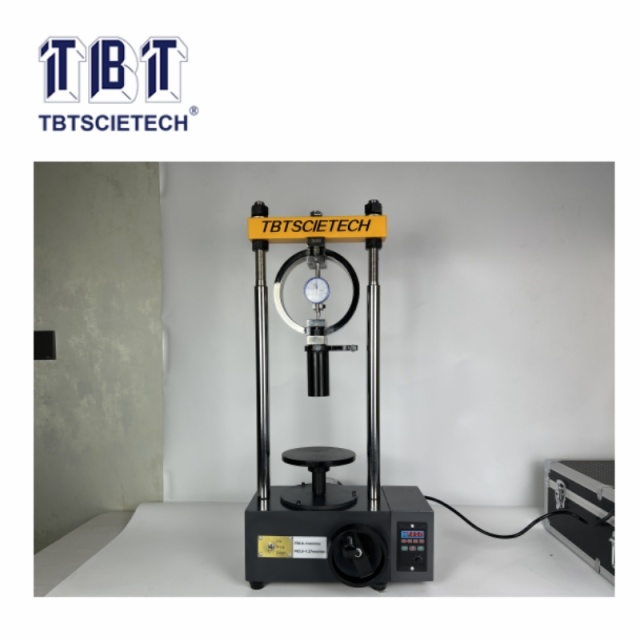

CBR Test Apparatus is suitable for test of soils and mix materials (the grain size of the soil is less than 40mm) compacted with CBR mold so as to confirm the bearing loading ability of pavement, roadbed, subcrust as well as material layer of the roadbed to be designed. It consists of a twin column frame, proving ring, penetration bar, loading plate, micrometer, measuring device for swell increment etc. and easy to operate.

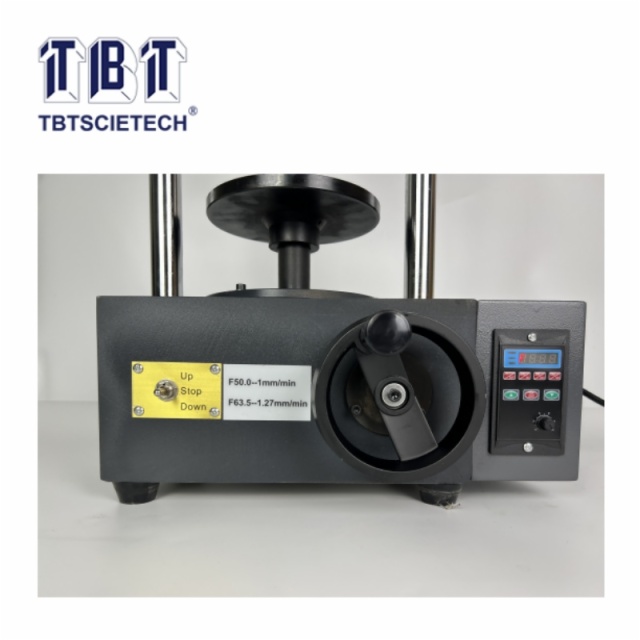

Load speed

1mm/min; 1.27mm/min

Max capacity

50KN



Penetration bar

Diameter of Platen:Ф50±0.05mm. Length100mm

Power

AC220V±10%    50Hz



1、Main machine          1set

2、Proving ring            1pc

3、Penetration bar         1 set

4、Instruction book         1 copy

5、Certificate of Quality      1copy
