The closed-loop servo control system which is composed of electric controller, servo valve, loading sensor, displacement sensor, extensometer and computer, can automatically & accurately control test process, automatically measure test parameters such as testing force, displacement, deformation, torque, and angle etc .
The testing machine can achieve sinuidal, triangle-wave, square-wave, sawtooth-wave, negtive-sawtooth wave, pulse-wave and other waveforms, can perform tensile, compression, bending, low-cycle & high-cycle fatigue tests. An environmental chamber can be configured to perform environmental simulation tests at different temperatures.
The testing machine operation is flexible & convenient. Cross-head lifting, locking and sample clamping are all operated by button. Thanks to advanced hydraulic servo loading technology, high-precision dynamic loading sensor and high-resolution magnetostrictive displacement sensor, the machine measure testing force and displacement automatically. Fully digital measurement & control system enables PID control for force, deformation and displacement, and achieve smoothly switch between each others. The testing software run under WINDOWS XP / Win7 with powerful data processing ability, can automatically save, display and print test conditions and results.
Relative standards:
GB/T 2611-2007, GB/T16825.1-2008, GB/T 16826-2008, JB/T 8612-1997, JB9397-2002, GB/T 3075-2008, GB/T15248-2008, GB/T21143-2007, HG／T 2067-1991, ASTM E399－09, ASTM E1820 2001.
Main Specification:
|
Model: TBT-
|
10H
|
25H
|
50H
|
100H
|
250H
|
300H
|
500H
|
1000H
|
|
Max.load KN
(dynamic & static)
|
±10
|
±25
|
±50
|
±100
|
±250
|
±300
|
±500
|
±1000
|
|
Loading frame
|
2-column
|
4-column
|
4-column
|
4-column
|
|
Column distance mm
|
555
|
600
|
650×500
|
850×600
|
950×700
|
|
Vertical test space mm
|
800-1000
|
800-1000
|
1000
|
1500
|
1500
|
|
Load measuring range
|
Dynamic 2%～100%FS
|
|
Load accuracy and fluctuation
|
Better than 1% of displayed loading value.
amplitude fluctuation is not more than ±1%F.S each stage
|
|
Load resolution
|
1/500000 yard
|
|
Loading display accuracy
|
Dynamic ±1%；static 0.5%
|
|
Displacement measuring range
|
100mm(±50mm) optional ±75mm
|
|
Displacement measuring resolution
|
0.001mmm
|
|
Displacement display accuracy
|
display accuracy 1% to ±0.5%FS
|
|
deformation
|
Display accuracy 2%，±0.5%
|
|
Frequency Range
|
Standard machine 0.01-30HZ （Can be extended to 50HZ）
hydrostatic support cylinder 0.01-100HZ
|
|
Main wave formats
|
Sine wave, pulse wave, square wave, sawtooth wave, random wave (mainly supported by controller)
|
|
Accessories
|
Constant forced flat-pushing tensile fixture for bar and flat specimen
|
|
Compression fixture
|
|
Environmental Chamber
|
Optional, high & low temperature environment chamber can be customized according to user requirements
|
Standard specification:

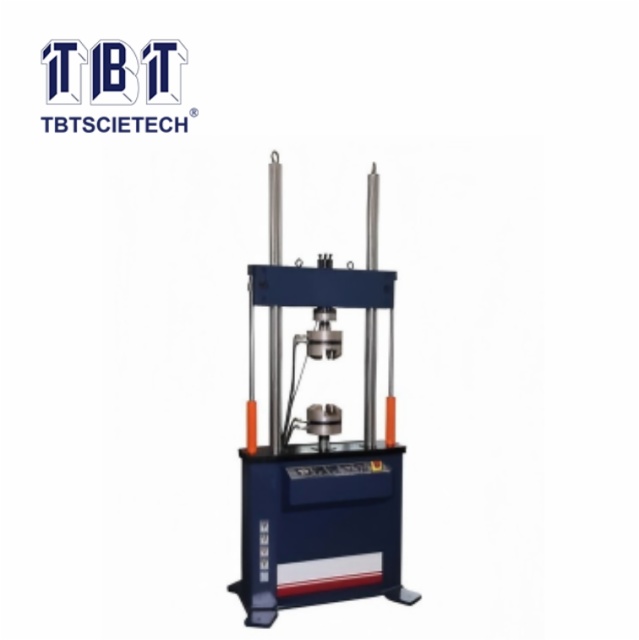

1, 2-column loading frame, the column is hard chrome plated & polished, with column distance 555mm and column diameter 75mm.
2, Upper cross-head is hydraulic controlled lifting & locking. The maximum vertical testing space is 800mm (expandable 1000mm).
3, Operation table height: 840mm.
4, Frame rigidity: 3×108 N/m
Configuration:
1. Robust thick 2 or 4-column loading frame.

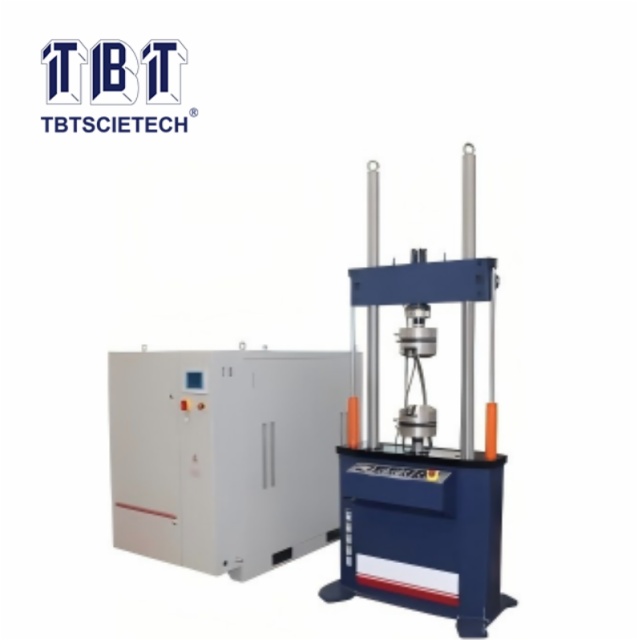

2. Intelligent constant-pressure silent power source.
3. Fully digital dynamic & static control system.
4. Man-machine dialogue in English with lower-computer operation application software.
5. Advantech industrial computer with printer.
6. Related accessories.
