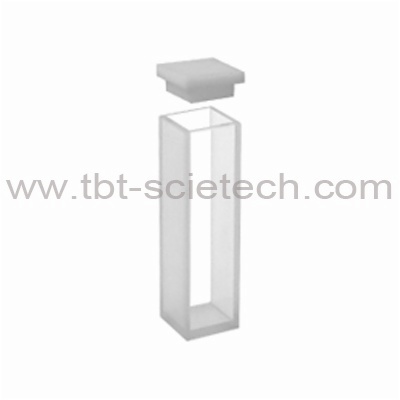

Standard cell with lid and level bottom
Outside Dim H*W*D mm
|
Path Length
mm
|
Inside Width
mm
|
Volume
ml
|
ES Quartz Glass 190nm-2500nm
|
IR Quartz Glass 250nm-3500nm
|
Optical Glass
340nm-2500nm
|
45*12.5*3.5
|
1
|
10
|
0.35
|
Q-401
|
I-401
|
G-401
|
45*12.5*4.5
|
2
|
10
|
0.7
|
Q-402
|
I-402
|
G-402
|
45*12.5*7.5
|
5
|
10
|
1.7
|
Q-403
|
I-403
|
G-403
|
45*12.5*12.5
|
10
|
10
|
3.5
|
Q-404
|
I-404
|
G-404
|
45*12.5*22.5
|
20
|
10
|
7.0
|
Q-405
|
I-405
|
G-405
|
45*12.5*32.5
|
30
|
10
|
10.5
|
Q-406
|
I-406
|
G-406
|
45*12.5*42.5
|
40
|
10
|
14.0
|
Q-407
|
I-407
|
G-407
|
45*12.5*52.5
|
50
|
10
|
17.5
|
Q-408
|
I-408
|
G-408
|
45*12.5*102.5
|
100
|
10
|
35.0
|
Q-409
|
I-409
|
G-409
|
