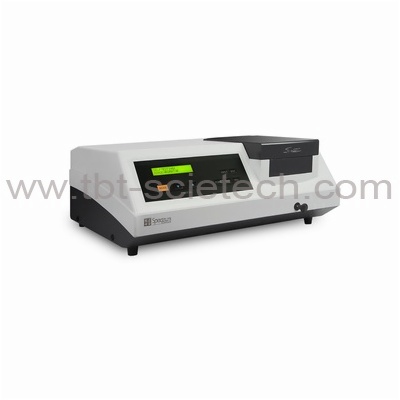

SP-2000UV/2000UVPC UV-Vis Spectrophotometer
An UV-Vis spectrophotometer costs less than ten thousand, but with power on self-testing, automatic wavelength calibration, light source auto-switching, PC controlled, etc. In the past, it might cost several ten-thousand even decuple with these advanced functions. SP-2000UV UV-Vis spectrophotometer takes use of high precision sine mechanism as a wavelength driver. Program control, wavelength accuracy, and the linearity over the full wavelength are obviously better than those of the congener instruments in which gear and rack is used as a wavelength driver, and a gauge dial is used for wavelength display.
ITEM/TYPE
|
SP-2000UV
|
SP-2000UVPC
|
Opitc Sysytem
monochromator
|
Littrow type optic system with 1200 grooves/mm diffraction grating
|
|
Wavelength Range
|
200-1000nm
|
200-1000nm
|
Spectrum Bandwidth
|
5nm
|
5nm
|
Wavelength Accuracy
|
±2nm
|
±1nm
|
Wavelength Repeatability
|
1.0nm
|
0.5nm
|
Photometric Range
|
0-125.0%T, -0.097-3.000A
|
|
Photometric Repeatability
|
0.3%T
|
0.3%T
|
Stray Light
|
≤0.5%T ( at 220nm & 360nm )
|
|
Baseline Flatness
|
---------
|
±0.004A
|
