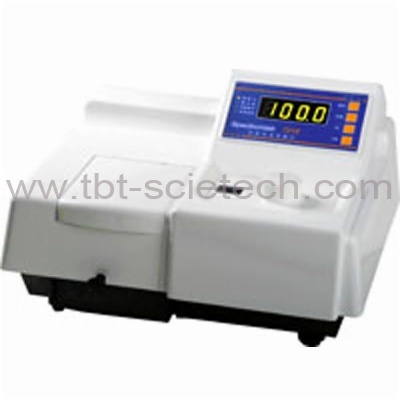

721S(721-100) Visible Spectrophotometer
Display Mode:
|
18mm luminosity 4 digital LED
|
Lamp:
|
Halogen-Tungsten Lamp
|
Optical system:
|
C-T configuration diffraction grating monochromator
|
Weight:
|
4Kg
|
Features
|
Whole environmentally friendly non corrosive and insulated material die-castings. Advanced optical system, high quality C-T monochromator and sealed grating, ensure high resolution, high photometric accuracy and low stray light. Sample compartment and cuvette rack is made from non corrosive material, a container put at bottom for leaked liquid sample can be moved and washed. Pre-aligned halogen-tungsten lamp, offer ease of use and simple maintenance. Built in SCM technology, auto 0%,auto 100%,error-free T/A transformation. Transmittance test, absorbance test, concentration factor setting or concentration direct readout functions. Spacious sample compartment, 4 position cell rack, adaptable for 1-10cm optical path rectangular cells.
|
Specifications:
Wavelength Range:
|
3 nm
|
Wavelength Reproducibility:
|
≤1.5 nm±(360-1000)nm
|
Wavelength Accuracy:
|
1.0%(τ)
|
Photometric Spectral bandwidth:
|
6 nm
|
Reproducibility:
|
≤0.3%(τ)
|
Stray Light:
|
≤1.0%(τ)
|
Photometric range:
|
TRANS: 0-199.9% ABS: -0.3-2.999 FACT: 1-9999 CONC: 0-9999
|
Standard Configuration
|
TRANS: 0-199.9% ABS: -0.3-2.999 FACT: 1-9999 CONC: 0-9999
Standard Configuration 1) 721S spectrophotometer 1 set or 721-100 spectrophotometer 1 set 2) Power cable 1 pc 3) User manual 1 pc 4) Certificate of quality checking 1 pc 5) Fuses(2A) 2 pcs 6) 1cm glass cuvette 2 pairs 0.5cm,1cm,2cm,3cm,5cm,10cm glass cuvette 2 pairs (721-100) 7) 1cm 4 position cuvette rack 1 pc 10cm 4 position cuvette rack 1 pc (721-100) 8) Packing list 1 pc Optional Accessories 1) Fuse (2A/3A) 2) Pre-aligned lamp 3) Glass cuvette 0.5cm,1 cm, 2 cm, 3 cm,5cm,10cm 4) 5 cm ,10cm cuvette rack (5cm adaptable for 1-5cm cuvette) ( 10cm adaptable for 0.5-10cm cuvette,only for 721-100) 5) Praseodymium-Neodymium optical filter
|
