Whiteness Meter Manufacturer

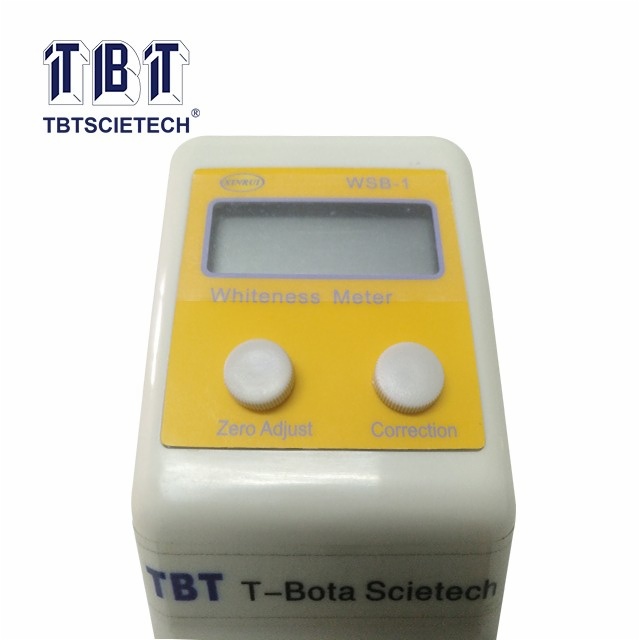

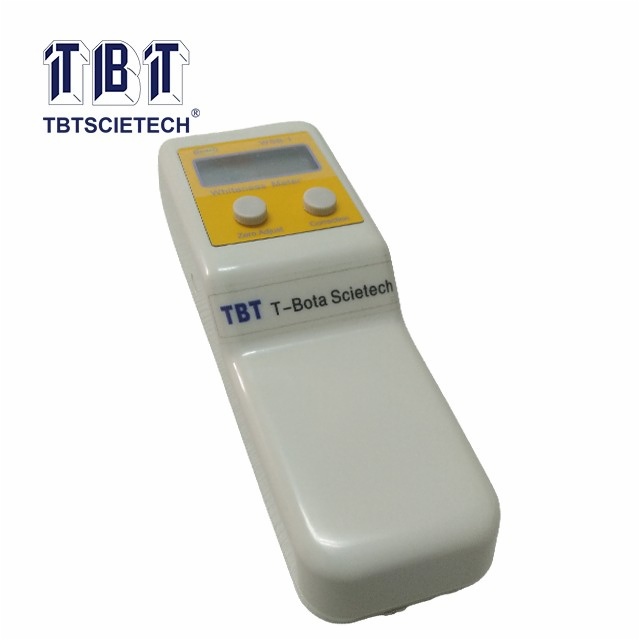

Whiteness Meter WSB-1

Item Code:WSB-1 Features:WSB-1 is mainly used for the measurement of the whiteness degree on the surface of the object or the powder in the white color and the color close to white. The whiteness degree can be accurately educed that is consistent with the visual degree. The opacity degree of the paper can also be accurately measured.

Description
Referring Standard
Features
Technical Specification

WSB-1 is mainly used for the measurement of the whiteness degree on the surface of the object or the powder in the white color and the color close to white.

The whiteness degree can be accurately educed that is consistent with the visual degree. The opacity degree of the paper can also be accurately measured.

It can detect whiteness degree of the objects like textile & printing & dying, oil paint & dope, chemical construction material, paper & paper plate, plastic product, white cement, ceramics, porcelain enamel, porcelain clay, French chalk, starch, flour, salt, wash, and cosmetics, etc.

1.AC & DC power supply, low power consumption;

2.It has functions of auto power off and low power dissipation, able to prolong service life of battery;

3.Adopt big-screen high transparent LCD display, comfortable reading and free of ill influence from sunlight;

4.The simple operation, and can accurately measure the opacity degree of the paper;

5.It adopts the standard white plate rated to convey the standard value for accurate and reliable result;

6.Configured with output port of measured values, possible to connect with recording meter.

Whiteness mean value	Whiteness degree of blue light Wb=R457
Measurement condition	45/0
Measurement range	0~199
Minimum readout	0.1
Basic error	≤±1
Repeatability	≤±0.2
Zero draft	≤±0.1
Size	257x75x65mm
Power supply	DC 15V, 5AA alkaline dry cells AC 220V/50Hz DC 7.5C 0.2A power supply adapter
