CBR Value Test Apparatus with Touch Screen Manufacturer

Description
Referring Standard
Features
Technical Specification

TBTCBR-III is designed to evaluate the California Bearing Ratio (CBR) of highway sub-bases and subgrades. It features variable compression speeds with a maximum load capacity of 50kN, and is suitable for testing materials with maximum particle sizes ranging from 25mm to 40mm.

BS 1377, 1924, EN 13286-47, ASTM D1883, AASHTO T193

1.Rigid frame and stable base for long term test;

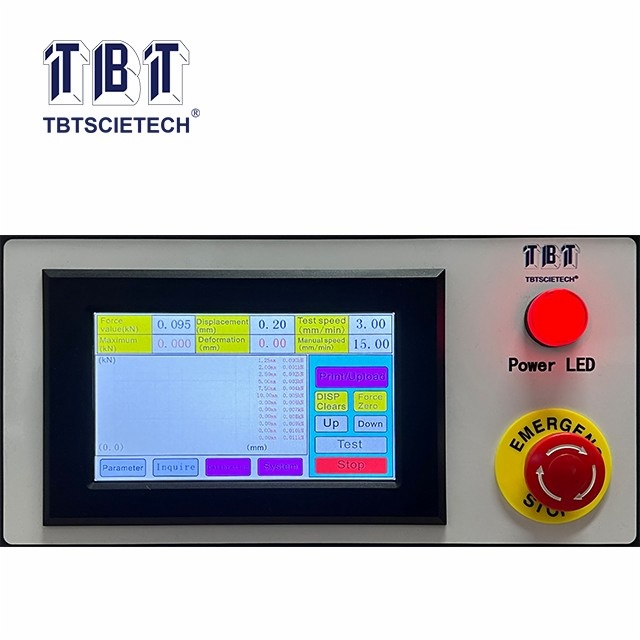

2.7-inch color touch screen display, with curve display, data storage and printing functions;

3.Deformation recording points and loading speed can be set according to different test standards;

4.With data processing function, CBR value can be calculated automatically;

5.Servo motor control and software provides speed feedback, stepless adjustment of loading speed;

6.Built in micro printer can print the test results.

Maximum load force capacity	50kN
Load force accuracy	0.001kN
Loading speed	1~15mm/min
Displacement sensor	Accuracy: 0~25mm, resolution: 0.01mm
Dada transmission	RS232
Penetration rod	End face diameter 50mm
Size	Around 57x46x102cm
Weight	Around 87kg
Power supply	220V, 50/60Hz

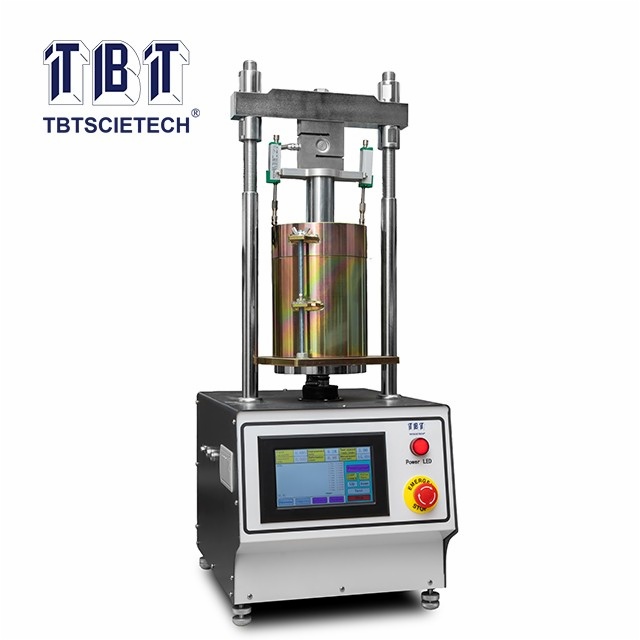

CBR Value Test Apparatus with Touch Screen TBTCBR-III
