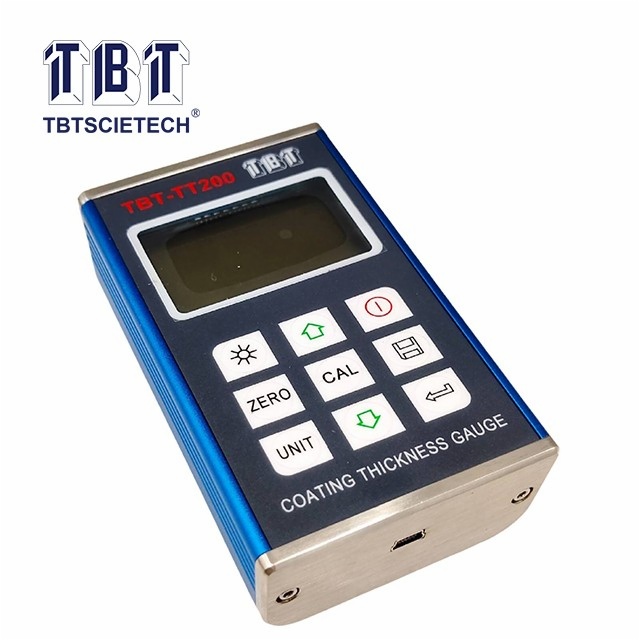

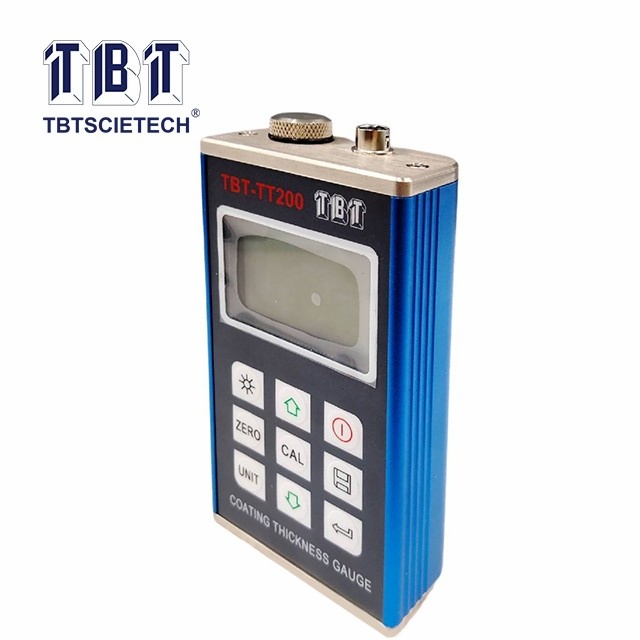

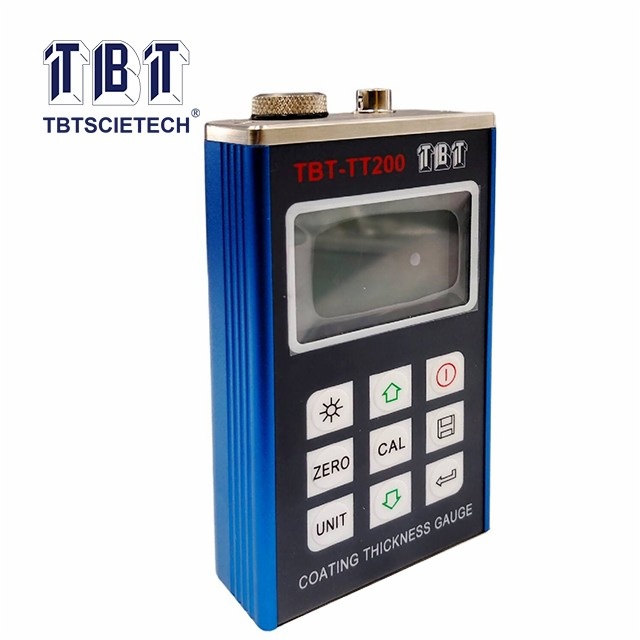

Coating Thickness Gauge TBT-TT200

Enlarge

Item Code:TBT-TT200 Features:TBT-TT200 is portable coating thickness gauge. It can test the coating thickness swiftly and accurately without damage but also can test the thin film thickness.

Description
Referring Standard
Features
Technical Specification

1.With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate, as well as non-conductive coating on non-magnetic metal substrate;

2.Five type probes (F400, F1, F10, N1, CN02) are available. F10 probe measures up to 10mm;

3.Two measuring modes: single or continuous, changeable;

4.Two calibration methods can be applied to the gauge; And the system error of the probe can be corrected with the basic probe calibration method;

5.Measured values and user information are shown on a large, easy-to-read LCD. A display back light ensures easy reading of screen data in poorly-lit conditions;

6.Measuring status indicator showing the measuring status;

7.The gauges’ user-friendly measuring system permits automatic storage of up to 1000 readings in one memory matrix for later statistical evaluation;

8.Battery information indicates the rest capacity of the battery;

9.Auto sleep and auto power off function to conserve battery life;

10.USB1.1 communication port. Optional software to process the stored data on the PC;

11.Compact aluminum case, suitable for use under poor working.

Measuring principle	Magnetic induction & Eddy current
Measuring range	(0~1250) μm, depends on probes. maximum 10mm for the probe F10. Refer to Appendix.
Low range resolution	0.1μm
Accuracy	±3%Thickness+1μm, depends on probes and conditions
Display	4 digits LCD with EL backlight
Memory	Up to 20 files (each file Max. 50 values) of stored values
Communication	USB1.1
Working temperature	-10℃~+50℃
Storage temperature	30℃~+60℃
Relative humidity	≤90％
Surrounding environment	It should avoid vibration, strong magnetic field, corrosive medium and heavy dust
Size	125×67×31mm
Weight	Approx. 340g
Power supply	Two “AA” size, 1.5 Volt alkaline batteries. 200 hours typical operating time (EL backlight off)
