Digital Compass Inclinometer Manufacturer

The instrument is designed to meet the non-magnetic region inclinometer and directional control engineering drilling, exploration drilling, directional drilling, etc. The instrument set of sensors, power supply, digital processing, and other units, a single point work independently and azimuth angle measurements drilling, without cable, no mechanical moving parts, reliable, cost-effective. The instrument can be widely used in engineering, hydrology, oil, coal, geology and other fields.

Inclinometer depth	≤1500
Measuring range and error
Angle measuring range	0 ~ 50 °, measurement error: ± 0.2 °
Azimuth measuring range	0 ~ 360 °
When the angle 1 ~ 3 °, the measurement error: ± 5.0 °
When the apex angle of 3 ~ 50 °, the measurement error: ± 3.0 °
Measuring mode	single point measurement location
Measurement delay time	(1 to 180) minutes adjustable
Power supply	Built-in lithium battery, a charge lasts about 32 hours (new battery)
Inclinometer probe Overall	Ф40mm × 1320mm
Environmental temperature	0 ℃ ~ 55 ℃

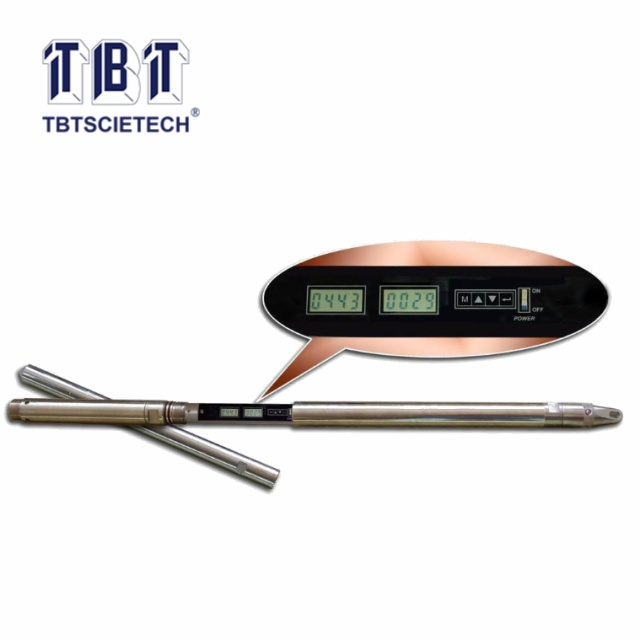

Digital Compass Inclinometer KXP-2B
