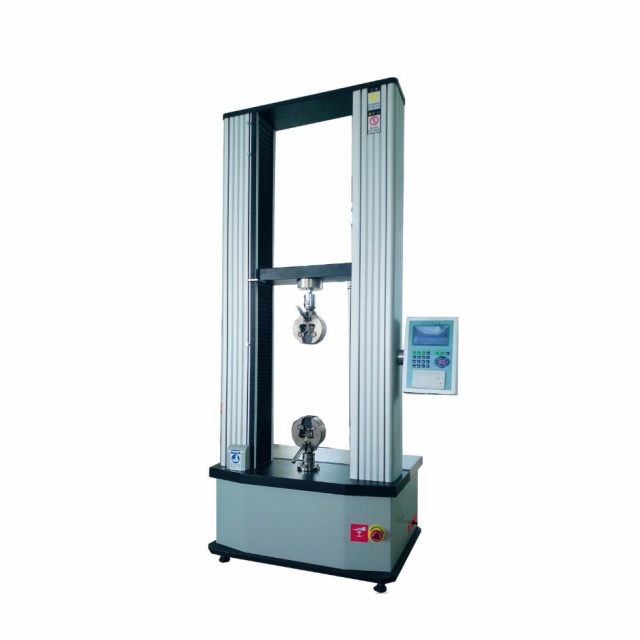

    Digital Display Electronic Universal Testing Machine TBTWDS-50/TBTWDS-100

    Digital Display Electronic Universal Testing Machine
    Item Code:TBTWDS-50/TBTWDS-100 Features:Digital Display Electronic Universal Testing Machine
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    1.Application:

    It is applicable for wide range of material for tension, compression, bending, shearing and low cycle

    test. Suitable for metal, rubber, plastic, spring, textile and components testing.

    It is widely used in the corresponding industries, research and development, test institutes and

    training centers etc.

    2.Standard:

    ASTM, ISO, DIN, GB and other international standards.

    Max. Load

    200KN

    Structure

    Four-column Door Model

    (Upper Is Tensile And Lower Is Compression)

    Control Method

    Single Chip Control

    Load Accuracy

    1 Class

    Load Range

    2%~100%F·S (4KN~100KN)

    Displacement Resolution

    0.04um

    Test Speed

    1~200mm/min

    Tensile Space

    550mm

    Compression Space

    550mm

    Test Width

    600mm

    Power Supply

    AC 220V±10%, 50Hz

    Grips

    Wedge Type, Plate Type And Other Grips As Customers’ Demand

    Weight

    Around 1800 KG

    Dimension

    1050*700*2421mm
