Digital Rockwell & Superficial Rockwell hardness Tester HRSS-150

Item Code:HRSS-150 Features:
  • Description
  • Main Specifications
  • Accessories

This tester a popular type Rockwell hardness testing machine with its novel appearance and unique inside structure, features high measuring accuracy, veliable performance and applicable to wide fields, it is used to for harness testing all kinds of Rockwell and Superficial Rockwell.

This tester has big screen to display, Brinell, Rockwell and Vickers for contrast. It has a lot of function such as keeping the increase and decrease of time, data dispose, storage, pick up, print and RS-232 computer output as well.
Suitable range: HRA.B.C.D.E.F.G.H.K and HR15N.T;30N.T;45N.T(scale).
All the technique index are accord with the technique condition standard of GB/T230.3-2002 Rockwell hardness tester and consult ISO6508-2:1999 international standard.
It serves to measure the hardness of hard metals, carburizing steels, quenching steels, hard cast irons, mild steels, A1, Cu and malleable irons.





Preliminary test force

29.4M(3kg),98.07N(10kg)

Total test Test Test Force

147.1N (15kg), 294.2N (30kg), 41.3N (45kg), 588.4N (60kg), 980.7N (100kg), 1471N (150kg)

Test force holding time

0-60S(can adjust)

Test force loading and releasing method

Automatic

Display method

Back light LCD screen

Data dispose

CPU

Others

HR,HB,HV,HK ect. hardness mimver for contrast

Automatic print
RS-232 computer output

Sample Max Size

working table to indenter 180mm, the center of the indenter to the arm of the machine 160mm

Contour size(L x W x H)

(551 x 260 x 800)mm

Net weight

approx 67Kg

Power supply

AC220V±5% 50-60Hz

Main attachment

one diamond indenter and one ball indenter, three working tables. Five pieces of hardness brocks: one HRC higher and one HRC Low, each a piece of HRB, HRN, HRT.









Other Products

Product Name:

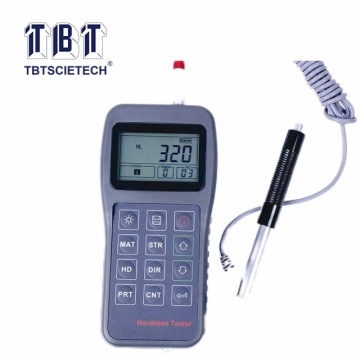

Portable Hardness Tester
