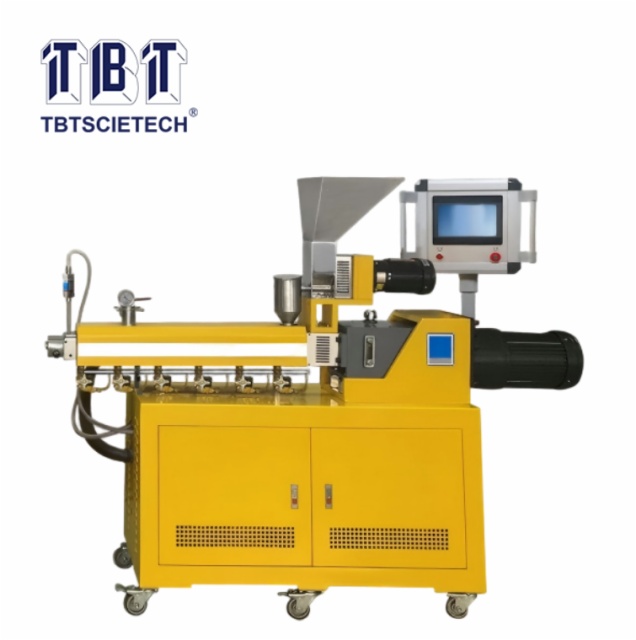

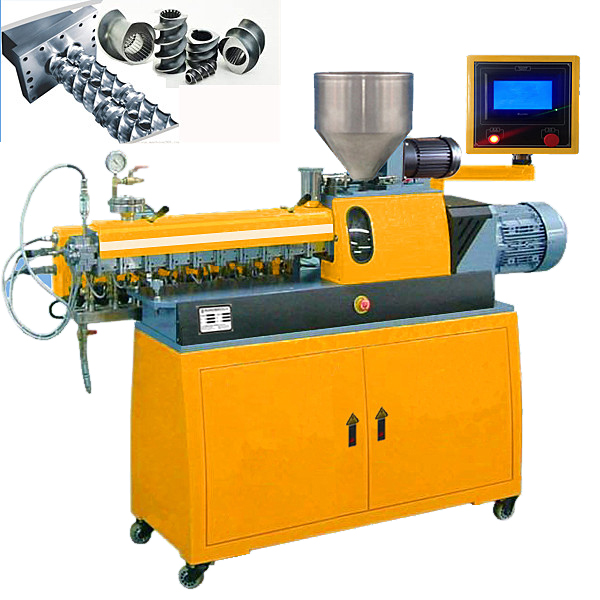

Double Screw Extruder(Bench-Top Equipment Type) Manufacturer

Description
Main Specifications
Accessories

This machine is suitable for polymer processing molding, especially for a small amount of samples for scientific research and development, to simiulate the plastic processing of various aspects of continuous and discontinuous process, especially suiatbe for the teaching and research and development.

Screw diameter	20
Rotation speed of screw	0-120 rpm
Length ratio	1:40
Screw material	40CrNiMo special tool steel with screw consisting of the feeding section, conveying section, compression region and mixing head
Heating zone	Charging barrel area has 5 aluminum heater, 1 heaters in the handpiece and the outside covered by safety fan cowl
Cooling device	soft water cisculating cooling is adopted in the whole section of the charging barrel
Driving system	precision gear reduction motor and decelaration rotation distribution integration
Feeding mouth	0-50 RPM
Volume W×D×H	Around 1960×500×1500 (W×D×H)mm
Power supply	AC380V，3 phase

Double Screw Extruder(Bench-Top Equipment Type) TBTDE-8177B
