Grid(Bar) Sieve Manufacturer

Grid(Bar) Sieve Model:TBTFS-GRID

Item Code:Model:TBTFS-GRID Features:

Description
Main Specifications
Accessories

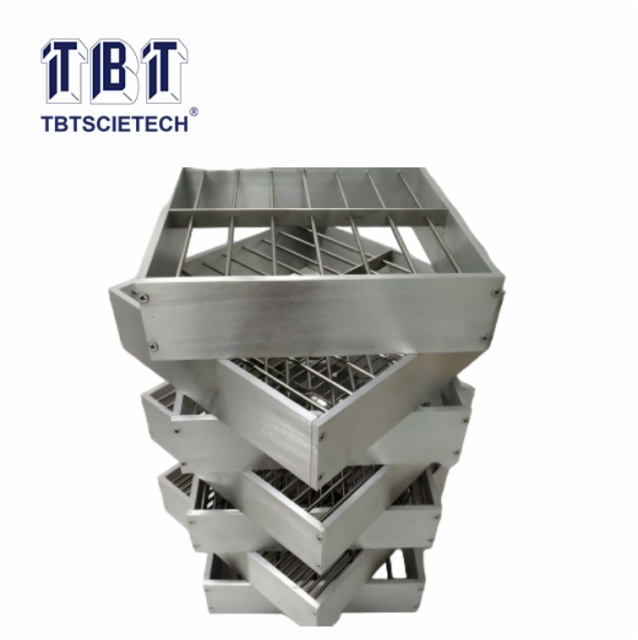

Grids sieves:also named bar sieves are made of stainless steel. It is manufactured with stainless steel frame and stainless steel bar. Each bar has different width to determine the particle shape and flakiness index of aggregates. It complies the current EN 933-3 standard. A complete set includes 14 grids sieves.

Frame material	Alum.
Slot material	stainless steel.
Type of mesh	bar
Slot width	50mm - 2.5mm
Grids sieves size	300mm × 300mm square
Height	75mm
Standard	confirming to EN933-3
Complete set	14 grids sieves

Item No.	Slot Width	Diameter of Material	Net Weight
Grid-50	50mm	100mm - 80mm	1.6kg
Grid-40	40mm	80mm - 63mm	1.7kg
Grid-31.5	31.5mm	63mm - 50mm	1.8kg
Grid-25	25mm	50mm - 40mm	1.9kg
Grid-20	20mm	40mm - 31.5mm	2kg
Grid-16	16mm	31.5mm - 25mm	2.1kg
Grid-12.5	12.5mm	25mm - 20mm	2.2kg
Grid-10	10mm	20mm - 16mm	2.3kg
Grid-8	8mm	16mm - 12.5mm	2.5kg
Grid-6.3	6.3mm	12.5mm - 10mm	2.6kg
Grid-5	5mm	10mm - 8mm	2.8kg
Grid-4	4mm	8mm - 6.3mm	2.9kg
Grid-3.15	3.15mm	6.3mm - 5mm	3.1kg
Grid-2.5	2.5mm	5mm - 4mm	3.2kg
Grid Sieves Size Table

Grid(Bar) Sieve Model:TBTFS-GRID
