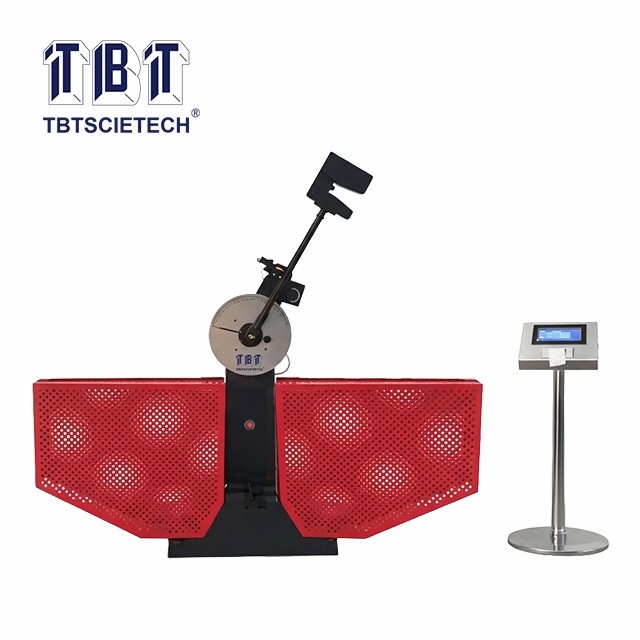

Impact Testing Machine (Digital Display) JBS-300B

Item Code:JBS-300B Features:JBS-300B is primarily designed to evaluate the impact resistance of high-toughness ferrous metallic materials, particularly steel, iron, and their alloys, under dynamic loading conditions.

Description
Referring Standard
Features
Technical Specification

JBS-300B is primarily designed to evaluate the impact resistance of high-toughness ferrous metallic materials, particularly steel, iron, and their alloys, under dynamic loading conditions.

ISO 148, EN 10045, ASTM E23

1.Pendulum lifting, impact execution, and release are automated via control box;

2.A safety pin secures the impact mechanism, and a standard protective enclosure prevents accidental injury;

3.The pendulum returns to its raised position after sample fracture to prepare for the next test;

4.Equipped with both large and small pendulums, the device displays energy loss, impact toughness, lift angle, and average values on the screen while showing the result on a dial gauge;

5.A built-in micro-printer allows for direct printing of the test results.

Impact energy	300J
Control method	Single chip control
Display way	Dial display and digital display
Distance between pendulum shaft & impact point	750mm
Minimum reading value	1J
Impact speed	5.2m/s
Pre-rising angle of the pendulum	150°
Specimen bearer span	40±0.2mm
Round angle of the jaw	R 1.0~1.5mm
Round angle of impact edge	R 2.0~2.5mm (optional: R8±0.05mm)
Angle accuracy	0.1°
Pendulum torque	M=160.7695N.m
Standard specimen dimension	10 x10(7.5 or 5) x55mm
Main host size	2124x600x1340mm
Weight	480kg
Power supply	380V, 50Hz, 3PH

Impact Testing Machine (Digital Display) JBS-300B
