Kinematic Viscometer Manufacturer

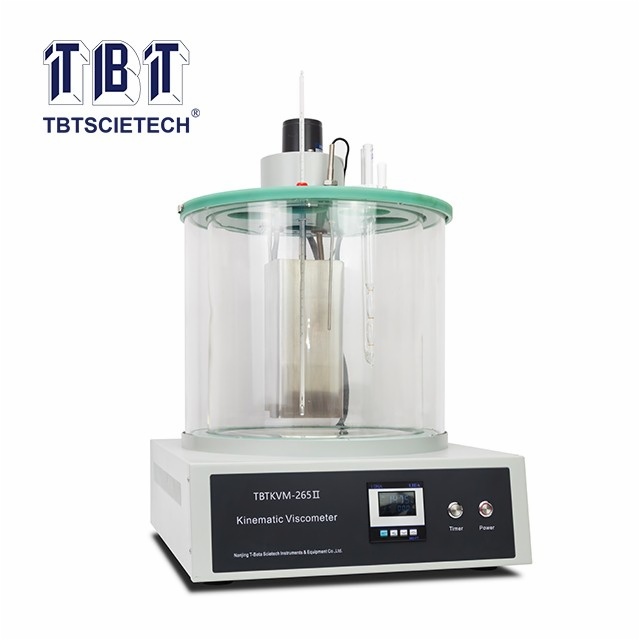

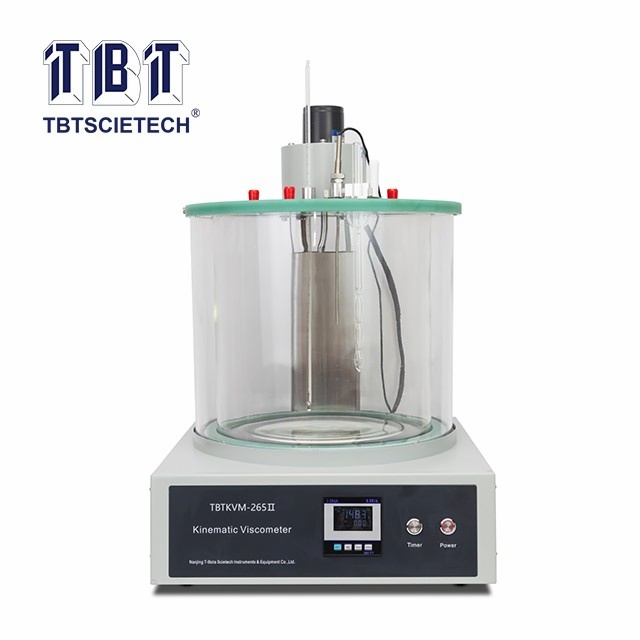

Kinematic Viscometer TBTKVM-265II

Item Code:TBTKVM-265II Features:TBTKVM-II Kinematic Viscometer is designed referring to ASTM D2170 Standard Test Method for Kinematic Viscosity of Asphalts (Bitumens).

Description
Referring Standard
Features
Technical Specification

TBTKVM-II Kinematic Viscometer is designed referring to ASTM D2170 Standard Test Method for Kinematic Viscosity of Asphalts (Bitumens).

It is used to determine the viscosity of asphalt at the stipulated temperature(Capillary Viscometer Method).

ASTM D2170

1.High precision digital temperature controller with electric stirring motor;

2.At the set observation temperature point, the heating power can be automatically adjusted to ensure the stability of bath temperature;

3.High temperature resistant glass bath with double layer structure;

4.Desktop structure and all-in-one design make it easy for operation;

5.The maximum heating temperature up to 180°C.

Max. temperature	180℃
Temperature control accuracy	±0.1℃
Mercury-in-glass thermometer	Type 1: temperature range 100~150℃ with 0.1℃ scale division
Mercury-in-glass thermometer	Type 2: temperature range 150~200℃ with 0.1℃ scale division
Bath capacity	Around 23L
Timing range	0~9,999.9s
Stirring motor	(1) Power: 6W (2) Speed: 1200 RPM
Temperature sensor	Pt 100
Capillary viscometer	Canfin countercurrent capillary viscometer;
	7 pieces in total. They are N0.200, 300, 350, 400, 450, 500 and 600
	(inner diameters of R tube of them are 1.02, 1.26, 1.48, 1.88, 2.20, 3.10 and 4.00 mm respectively)
Working temperature & humidity	-10℃~+35℃, <85%RH
Heating power	1700W
Size	530×400×670mm
Power supply	220V, 50Hz
