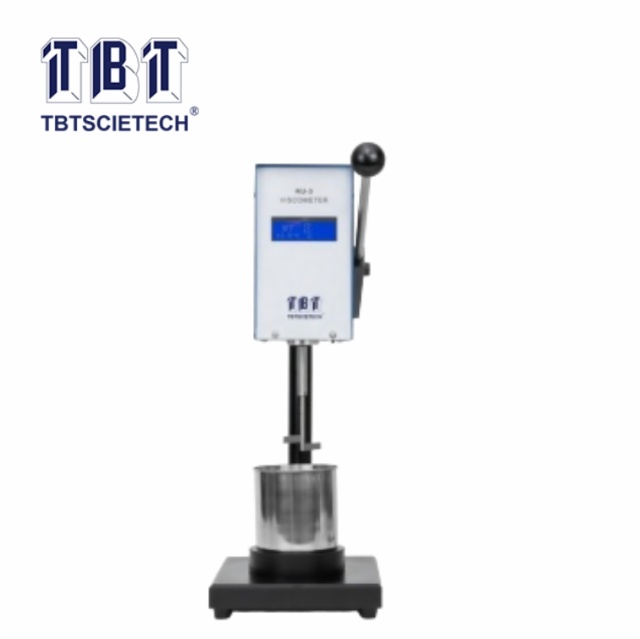

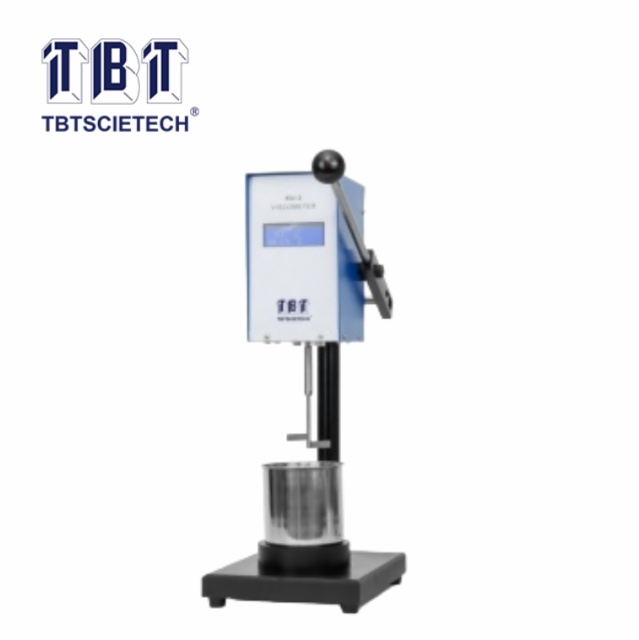

Krebs Viscometer TBTKU-3

  • Krebs Viscometer
  • Krebs Viscometer
Item Code:TBTKU-3 Features:
  • Description
  • Referring Standard
  • Features
  • Technical Specification

TBTKU-3 Krebs Viscometer was designed to measure paint and other coating viscosity indicated with KU values. And it can show the test sample’s viscosity in KU value or CP value or g value.


This machine was adopted and controlled by micro-computer. The dispersing disc rotating at a constant speed of 200r/min, when the dispersing disc rotating in the test sample, the resistance force of the disc convert into KU value by micro-computer, the operator can read the KU value, CP value and g values directly from the display.



Measuring range:

40.2KU~141.0 KU,32g~1099g,27cP~5250cP

Measuring accuracy:

±1.5% FSR

Repeatability:

 ±1.5% FSR

Agitating shaft speed:

200r/min±1r/min

Capacity of vessel:

around 500ml

Input power:

220V 50Hz

Power:

 10w

Overall size:

180mm*210mm*470mm (L*W*H)

Shipping weight:

9kg
