Lab Double-Roll Mill (Electric-heating Type) Manufacturer

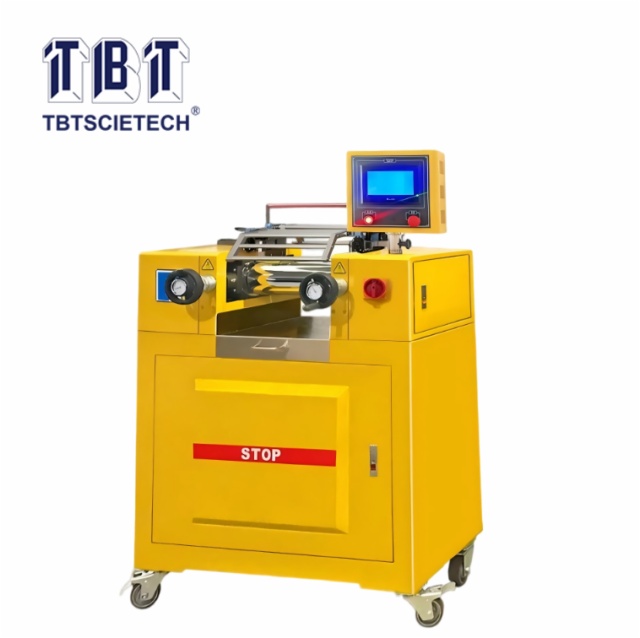

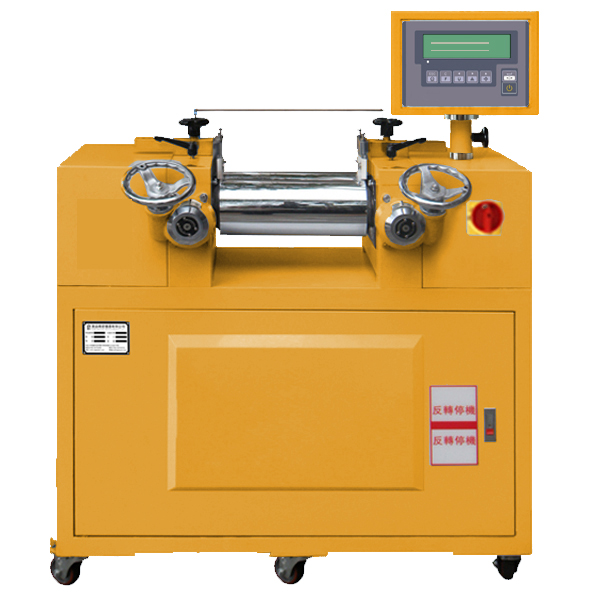

Lab Double-Roll Mill (Electric-heating Type) TBTRM-8175AL

Item Code:TBTRM-8175AL Features:

Description
Main Specifications
Accessories

This experimental mill can be applied to the mixing and scattering of engineering plastic raw materials, color masterbatch material and other polymers. The double roll mirror surfaces of this machine are plated by chrome. It adopts special for electric heating to make the temperature of roller surface uniform.

Roller space can reconcile three-dimensional security devices, safe and reliable, advanced and practical.

Temperature	Room temperature to 260℃
Temperature controller	High precision of LED digital display, can be set up and display of temperature
Heating method	Electro-thermal tube
Heating time	About 20min from room temperature to 150℃
Cooling system	Tap Water cooling
Roller size Ø×L	Ø150×L320mm
Rotate ratio	1: 1. 4
Roller space	0.1 to 10mm adjustable
Roller hardness	HRC 60
Safety protection	stop while pulling rod, inversion with knees and other security devices
Volume W×D×H	Around1000×530×1150 (W×D×H)mm(without the adjustable electric control box)
Power supply	AC380V，3phase
Weight	About 485kg
