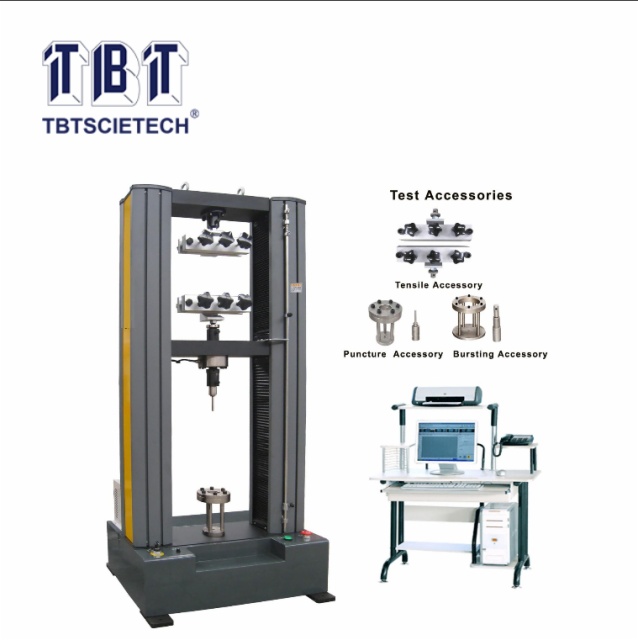

    Multi-Functional Electronic Geotextile Strength Tester TBTWDW-50T/100T

    Multi-Functional Electronic Geotextile Strength Tester
    Item Code:TBTWDW-50T/100T Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    Used for testing tension, tear, burst, seam, and other indicators of all kinds of geotextiles.





    Working space: double space
    Measuring range: 1kN、2.5kN、5kN、10kN
    Force range: 1%~100%
    Resolution: ≤±0.2%FS
    Tension speed 10~1000mm/min
    Minimum distance: 25mm
    Elongate resolution: 0.01mm
    Double column: 390mm
    Dimension: 880×520×1600mm
    Power supply: AC220V 400W




    Other Products

    Product Name:
    DIRECT SHEAR & PULLOUT TESTER FOR GEOSYNTHETICS
    Model:
    TBT1280
    Description:
    TBT1280 Direct Shear & Pullout Tester for Geosynthetics is used to determine the shear resistance and the pullout resistance of a geosynthetic against soil by the direct shear test and by the pullout test separately. It is suitable to geotextiles, geomembranes, geonets and georids. Related Standards: Direct shear test: ISO 12957.1, ASTM D5321 Pullout test: ASTM D6706
    Product Name:
    Series Sample Cutter
    Model:
    TBTQY-01B
    Description:
    Product Name:
    Geotextile Water Permeability Tester
    Model:
    TBTYT-020N
    Description:
    Product Name:
    Geosynthetics Thickness Tester
    Model:
    TBTYT-060
    Description:
    Product Name:
    Geosynthetics Bursting Strength Tester
    Model:
    TBT1232D
    Description:
