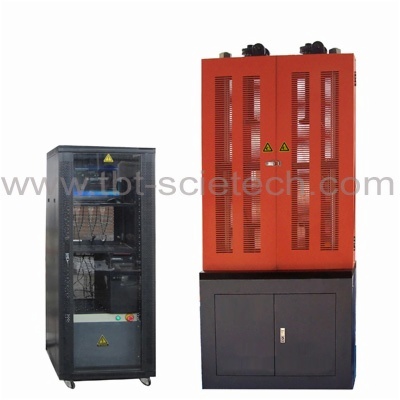

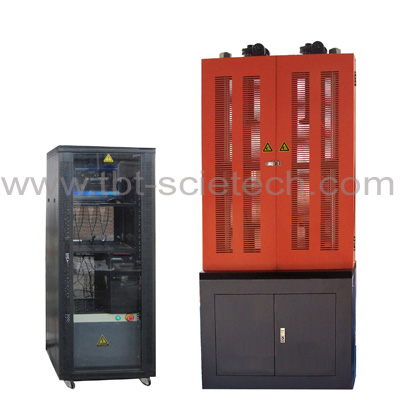

Multi-station Spring Fatigue Testing Machine Manufacturer

Multi-station Spring Fatigue Testing Machine TBTTPJ

Item Code:TBTTPJ Features:

Description
Referring Standard
Features
Technical Specification

It is applicable in dynamic test, cyclic life test at ambient temperature and other fatigue tests for various springs ( high strength, high stress, special materials), elastic components.

Various springs including:tensile spring, compression spring, disc spring, ring spring, blade spring, spiral spring, valute spring, cold coiling spring, hot coiling spring, cylindrical spring, conical spring, convex and concave spring, noncircular spring, damping spring, hydraulic spring, locomotive suspension spring, variable damping gas spring, gas pressure damping spring, rubber gas spring, railway locomotive bus CRH spring, damper, gas spring, recliner, deformed spring, elastic components, etc.

Important tests: dynamic fatigue test, cyclic life at ambient temperature. tensile fatigue test, Load locking fatigue test, environmental simulation fatigue test, etc.

TPJ-1kN/2kN/5kN/10kN/20kN/50kN Two-station/Three-station/Four-station/Multi-station Spring fatigue Testing Machine
1	Max. load	1kN	2kN	5kN	10kN		20kN	50kN
2	Frequency	1-5Hz						0.5-2.5Hz
3	Amplitude	0-±50mmmm, can be customized
4	Stroke	0-100mm, can be customized
5	Counter capacity	9×10⁹ times
6	Spring diameter	OD≤Φ90mm				OD≤Φ150mm
7	Free length of spring	150mm				390mm
8	Vertical test space	200mm, can be customized				450mm, can be customized
9	Size of working table	Designed as spring size and working position
10	Positions number	Two-station, three-station, four-station, multi-station
11	Working power	380V, 50Hz
12	Power of main power	8kW			11kW			15kW
