200T Double Vulcanizing Machine Manufacturer

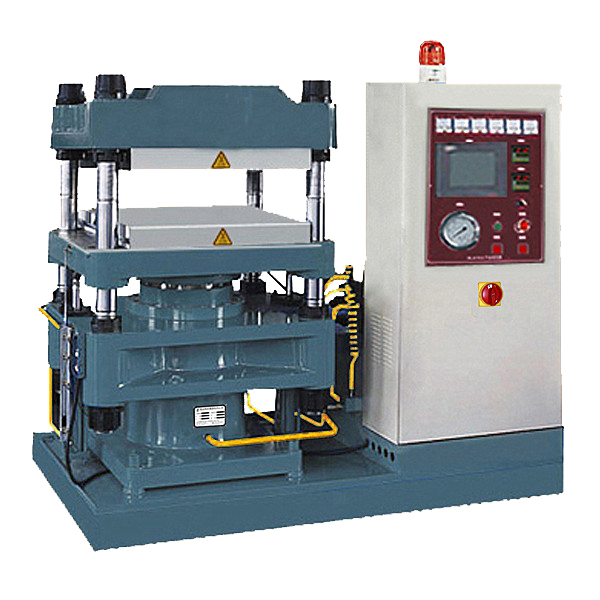

200T Double Vulcanizing Machine TBTTM-8170D

Item Code:TBTTM-8170D Features:

Description
Main Specifications
Accessories

This machine applies to the compression and moulding of rubber, plastics, resins and other polymer materials. It's equipped with a programmable LCD, which can set pressure, temperature, time, exhausting frequency and the number of seconds with human-machine interface operating system. The vulvanization process will be dynamic cally and instantly displayed and monitored. The mould pressing process will be completed automatically. This machine is very simple with extensive and efficient application.

Capacity	200T
Temperature	Room temperature to 300℃
Temperature accuracy	4℃
Heating method	Electrical Heating Module
Heating-up time	Room temperature - 200℃, 35mins
Pressure Plate	400400/450450/500*500mm
Cold Pressure Plate	300-550mm
Distance of Pressure Plate	100mm
Pressure Material	SKD chromium-molybdenum alloy
Pressure Surface	Mirror chrome plate
Vulcanizing time	0-999, 3 sections
Cooling type	Tap water cooling
Oil cylinder speed	11-50mm/s
Power supply	AC380V，3phase
