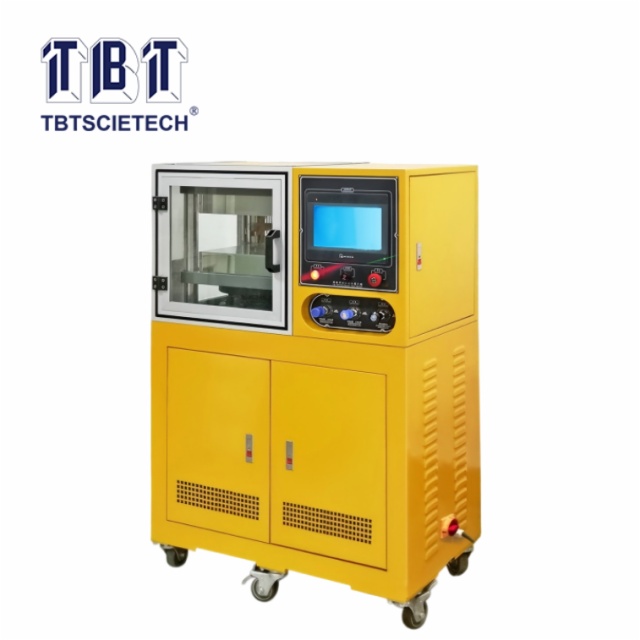

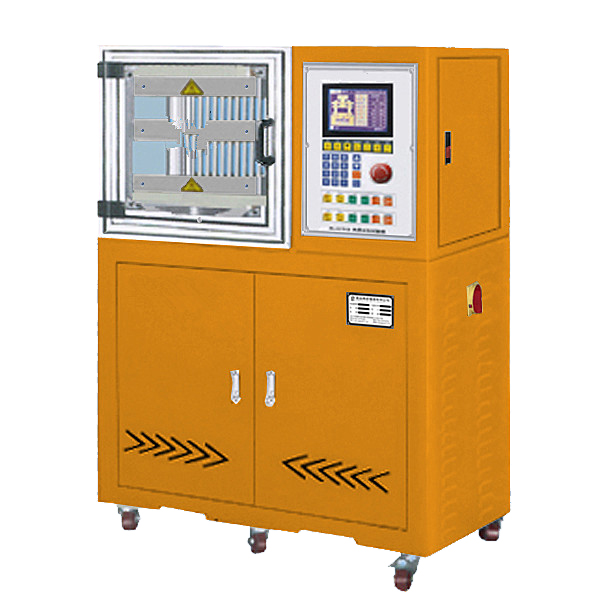

Lab Tablet Machine (PLC Control Type Manufacturer

Lab Tablet Machine (PLC Control Type TBTTM-8170B

Item Code:TBTTM-8170B Features:

Description
Main Specifications
Accessories

The machine is equipped with PLC program control color touch screen. The computer program can be in accordance with the preset mold program automatically change slope and circulating moulded, advance and reliable.

Capacity	20T
Temperature	Room temperature to 300℃
Temperature accuracy	±2℃
Heating method	Electrical Heating Module
Pressure Plate	30030060mm
Distance of Pressure Plate	150mm
Pressure Material	SKD chromium-molybdenum alloy
Pressure Surface	HRC60 Mirror chrome plate
Cooling type	Tap water ciiling, heating program completed then shift to cooling with full pressure
Oil cylinder speed	11-50mm/s
Volume W×D×H	Around 900 × 500 × 1450mm
Power supply	AC380V，3phase
Weight	About668kg
