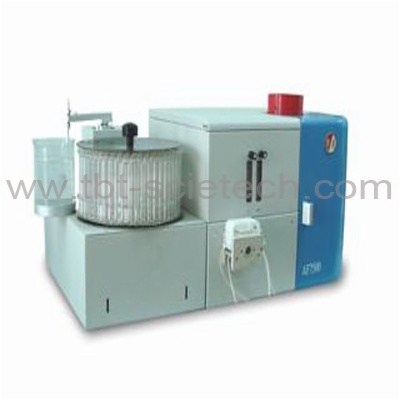

AF7500 Atomic Fluorenscence Spectroscopy with Auto-sampler
AF-7500 Atomic Fluorescence Spectrophotometer with Auto-sampler is the new generation of atomic fluorescence spectrophotometer successfully developed by our company, based on the technical strength of our company. The instrument synthesizes the latest fruits of modern sciences and technologies, computer, photoelectric technologies, offering a convenient, highly efficient, safe and reliable analysis method to broad users.
This instrument has very low limit of detection, but very broad linear range. Many
major technical features reach the advanced level both in China and overseas.
Major Technical Features
Being able to²1. Measure Many Elements and to Measure Two Elements at Same Time
Suitable for use of Trace and Ultra Trace Analysis of Eleven Elements, such as
As, Sb, Bi, Se, Sn, Pb, Ge, Te, Zn, Cd, Hg.
2.Raise Two Times of Working Efficiency of Instrument
Due to Seamless Combination of 8-wayn Sample Injection Valve and Peristaltic
Pump (Invented, Pending Patent), it Realizes Continuous Flowing, Discontinuous Sample Injection, Alternatively Injecting Samples in Two Channels, and Alternatively Analysis. When One Channel is Washing and Injecting Samples, another Channel can Perform Analysis. And there is no Cross Contamination.
First Invented Infrared Ray²3. Controlled, Membrane Separation Type Gas-Liquid Separation System
Usage of Infrared Ray Controlled, Membrane Separation Type Gas-Liquid Separation System (Pending Patent) makes that Waste Liquid is not Discharged by Pump. Separation of Gas and Liquid is more Completely, Really Realizing Flame of No Color. Noise level is Reduced Substantially and Limit of Detection is Improved Greatly and Broaden Linear Range.
Automatically Light Ar, H2 Flame at Low²4. Temperature
Improve Sensitivity by Several Folds. “Memory” Effect is Smaller.
General Power Supply for High Intensity Hollow Cathode Lamp and²5. Specialized Hollow Cathode Lamp
Offer Users Convenient Light Source that can be Changed at any Time based on User’s Needs.
Far Infrared Heated²6. Atomizer
Use Advanced Far Infrared Heated Atomizer, making Temperature Rise Quickly, Accuracy of Constant Temperature High, and Working Life Long.
Automatically Controlled Air Routes²7.
This Instrument Synthesizes Large Volume Advanced Circuit Control System, making Air Routes be able to Automatically Controlled, to Automatically Protected, to Ensure Safety of Analysis.
Safe²8. & Reliable
Since Liquid Route System Adopts Strong Corrosive-Resistant Material, Instrument is more Safe and Reliable in Usage
Cheap Analysis Cost²9.
Consumption of Reagent, Sample and Arn is Reduced Substantially.
10. Automatic Computer System Analysis
n AF-7500 Windows Application Programs make Analysis Procedures Automatic. User can Use this Program to Realize Sampling, Spectrogram Display and After Treatment, Generation of Sample Table, Result Calculation, Result Printing and other Functions. Computer System Uses Duel Channel Analysis and can Control Each State of Instrument According to Parameters Designated by User, Realizing Technical Actions including Automatically Lighting, Automatically Preheat, Temperature Rising by Segment and etc.
11. Compact Instrument Volume
Since Large Volume of Latest Photoelectric Technologies are Used, Volume of Whole Instrument is Reduced to 1/2 of Products of Same Category in China, especially Suitable for Use in Places having High Requirement for Instrument Space, for example, on Ships.
12. Automatic Sample Injector
Large Volume Sample Rack Containing 130 Cups. Simple Structure and Accurate and Reliable Actions. Small Volume, Light Weight. Simple Connection to Major Unit. Quick Switch between Manual and Automatic States
Technical Features
|
Elements
|
As, Sb, Se, Bi, Te
|
Ge
|
Hg, Cd
|
Sn, Pb
|
Zn
|
|
Limit of Detection (ng)
|
<0.01
|
< 0.03
|
<0.001
|
<0.05
|
<1
|
|
Linear Range
|
4-5 orders
|
|
RSD
|
≤ 1.0%
|
Fields of Application
This Instrument is Widely Used. Fields of Application Includes: Trace Analysis and Ultra Trace Analysis in Fields of Food Safety, City Water Supply and Water Discharge, Environment Protection, Agriculture, Metallurgy, Cosmetics, Medicine, Geology, Commercial Examination and etc. For Example:
Analysis of Samples of Food²1. Hygiene
Examination of Environment Samples²2.
Examination of City²3. Water Supply and Water Discharge
Analysis and Examination of Agricultural²4. Products
Examination of Fishery and Sea Water Samples²5.
Examination²6. of Metallurgy Samples
Clinical Test and Examination of²7. Medicine
Geological General Investigation, Mine Discovery, as well as²8. other Applications
