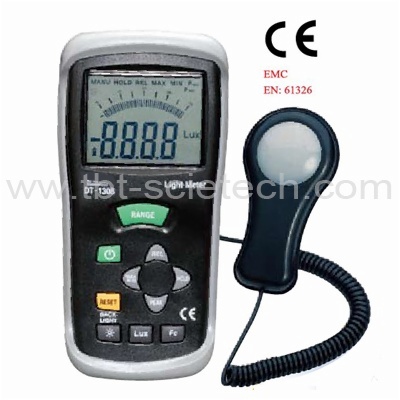

DT-1309 Digital Illuminance Meter
I. Product Specification:
Display
|
3-3/4 digit LCD with high speed 40 segment bar graph
|
Measuring Range
|
Lux,400.0 Lux,4000 Lux,40.00 KLux and 400.0 KLux /40.00 FC,400.0 FC,4000 FC,40.00 KFC.NOTE: 1FC=10.76Lux,1KLux=1000Lux,1KFC=1000FC
|
Over range Display
|
LCD will show “OL” symbol
|
Spectral Response
|
CIE Photopic. (CIE human eye response curve)
|
Spectral Accuracy
|
CIE Vλ function f1’less than6%
|
Cosine Response
|
f2’ less than2%
|
Accuracy
|
±5% rdg±10d.(<10,000Lux)±10% rdg±10d.(<10,000Lux)
|
Repeatability
|
±3%
|
Sampling Rate
|
1.5 times/sec of analog bar-graph indication;1.5times/sec of digital display
|
Photo Detector
|
One silicon photo diode and spectral response filter
|
Operating temperature & Humidity
|
0°c to 40°c(32°Fto 104°F) & 0% to 80% RH
|
Storage Temperature & Humidity
|
-10°c to 50°c(14°F to 140°F) & 0% to 70% RH
|
Power Source
|
1 piece 9V battery
|
Photo detector Lead Length
|
150cm (approx.)
|
