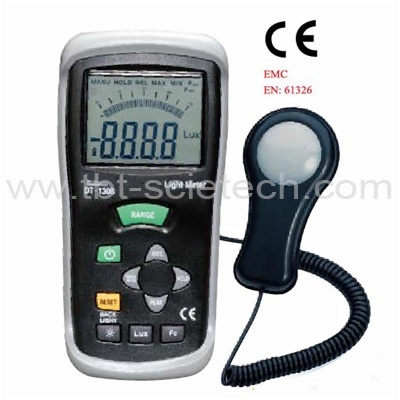

DT-1308 Light Meter
I. Product Specification:
Display
|
3-3/4 digit LCD with high speed 42 segment bargraph.
|
Measuring Range
|
40.00 lux,400.0 lux,4000 lux,40.00 Klux and 300.0 Klux /40.00 fc,400.0 fc,4000 fc,30.00 Kfc.
NOTE:1fc=10.76lux,1Klux=1000lux,1Kfc=1000fc
|
Over range Display
|
LCD will show “OL” symbol
|
Spectral Response
|
CIE Photopic. (CIE human eye response curve)
|
Spectral Accuracy
|
CIE Vλ function f1’less than6%
|
Cosine Response
|
f2’ less than2%
|
Accuracy
|
±5% rdg±0.5% f.s
|
Repeatability
|
±3%
|
Sampling Rate
|
13.3 times/sec of analog bar-graph indication;1.3times/sec of digital display
|
Photo Detector
|
One silicon photo diode and spectral response filter
|
Operating temperature & Humidity
|
0°c to 40°c(32°Fto 104°F) & 0% to 80% RH
|
Storage Temperature & Humidity
|
-10°c to 50°c(14°F to 140°F) & 0% to 70% RH
|
Power Source
|
1 piece 9V battery
|
Photo detector Lead Length
|
150cm (approx.)
|
Meter Dimensions
|
170L×80W×40H
|
Weight
|
390g.
|
