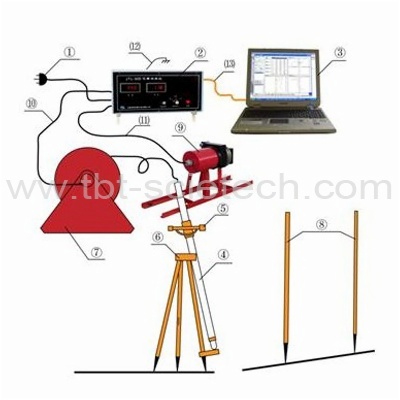

    Gyroscope Inclinometer JTL-50D

    Gyroscope Inclinometer
    Item Code:JTL-50D Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    1. It adopts three freedom frame gyroscope structure and new designed digital circuit.
    2. It adopts long distance techniques, so it can correct drift automatically.
    3. It adopts computer techniques. This highly improves measurement accuracy and reliability.
    4. It is suitable to determine dip angle and azimuth angle at multi-points in the magnetic area or in the borehole with casing tube.
    5. It is equipped with excellent software, so it is fine to be operated. It can meet requirements of users.




    Measurement range and error

    1)Dip angle measurement range: 0～50°;

     Measurement error: ±0.2°

    2)Azimuth angle measurement range: 0～360°;

    Measurement error: ±5°; drift: 12°/h
    Measurement depth 1200 m
    Inclinometer probe Φ50 mm
