Underwater Concrete Perfusion Elevation Locator Manufacturer

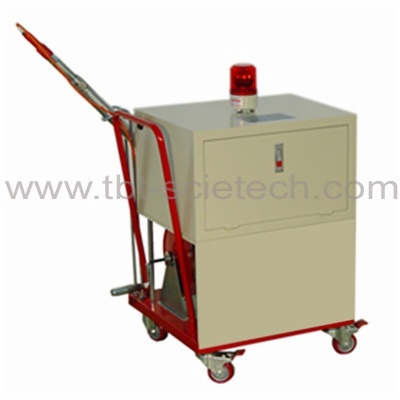

1. This instrument is composed of a ground instrument and a measuring probe. The ground instrument is placed on a small wheeler. Easy to move.

2. It adopts advanced PC technology. It can collect, analyze, calculate and process the data automatically. The test results are reliable.

3. It adopts acousto-optic alert to make the operator judge and control the location.

4. Notebook PC and software are optional. The measuring value can be displayed in real time and saved for analyzing.

Locating range	0m～30m
Locating precision	±0.3m
Dimension of probe	Φ50mm×980mm
Net weight of probe	7.5kg
Working condition：
Ambient temperature	Controller on the ground: -10℃～50℃
Relative humidity	Probe under the ground: 0℃～40℃
Power supply	AC220V±10%, 50Hz; 20W
Power supply	Or UPS (AC220V sine wave)
Measuring mode	Fix-point and timing measurement
