Horizontal Digital Inclinometer Manufacturer

1. Digital measuring technology. High performance sensor and digital signal processing. The test result is precise and reliable.

2. The measurement is controlled by a ground based instrument. All data are saved in the measuring probe. Users can get the dip angel and azimuth angel after the data being processed by the instrument.

3. A RS-232 is used for transmitting the data from the ground based instrument to a PC.The measuring result can be printed put after the data is processed.

4. The upper computer software can show the measuring data and projection drawing clearly and directly. It saves the measuring data automatically. All data and projecting drawings can be printed on a piece of A4 paper.

Measuring depth	≤1200m
Measuring range and precision	Dip angle： range -60°～60°，precision：±0.1°；azimuth angle: range 0°～360°，precision：±1.5°
Sampling interval	60s and 120s are optional
Data saving amount	Probe： 1200pcs（sampling data）, ground base instrument： 100pcs（measuring points）
Battery	Rechargeable Lithium battery （7.2V/2A）
Power supply	AC220V±10%、50Hz
Continuous working hours	Measuring probe >24h, ground based instrument >40h（Back-light is closed）, ground based instrument >20h（Back-light is open）
Working environment	Ground based instrument： Temp.：-10℃～50℃, RH：≤85% Measuring probe： Temp：0℃～55℃, Pressure resistance：≤15MPa
Dimension	Ground based instrument：190mm×110mm×50mm, measuring probe： Φ40mm×1030mm

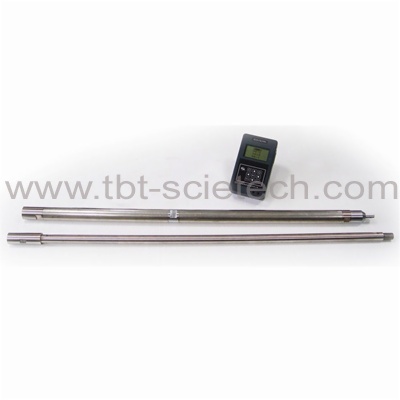

Horizontal Digital Inclinometer KXZ-2A
