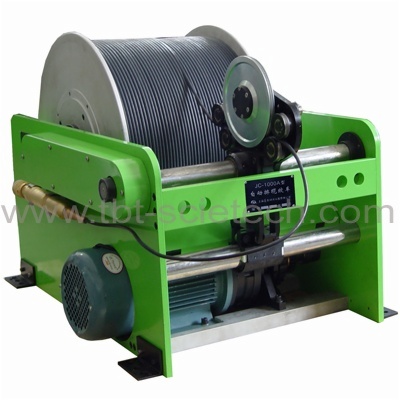

1. Functions: Automatic/manual, constant speed control, point measuring/continuously measuring, automatic depth correction.
2. High automation. The constant speed control can meet Class A in standard DZ/T 0196.8-1997.
3. Automatically break after outage. Automatic stop protection when depth mutation occurs.
4. It has automatic break function when using hand-cranking. Humanized.
5. LCD display. It shows information in real time.
Speed range
|
(0~30)m/min
|
Depth range
|
(0~1000)m
|
Control mode
|
JCK-1 Winch Controller
|
Working temperature
|
(-10~70)℃
|
Power supply
|
AC(220±10%)V,50Hz
|
Motor power
|
1100W
|
Net weight
|
110Kg(cable is not included)
|
Dimension
|
860 mm×600 mm×700 mm
|
Cable
|
1000m(Diameter:6.5mm)
|
2. JCK-1 Winch Controller
Speed range
|
(0~30)m/min. Automatic or manual
|
Constant speed range
|
(0.5~20)m/min. Bias is ±5%
|
Depth range
|
(0~9999.99)m,bias ≤±0.4‰
|
Control mode
|
Automatic, manual and verification
|
Control direction
|
Up and down
|
Measuring mode
|
Point or continuous
|
Signal
|
RS232 or pulse signal
|
Working temperature
|
(-10~55)℃
|
Power supply
|
AC220V±10%,50Hz
|
