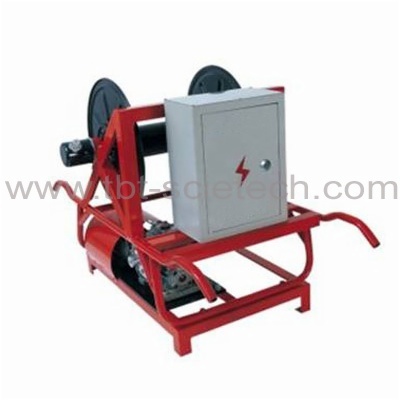

Continuously Variable Winch Manufacturer

1. When the winch using WTQEF seven-core cable (11.3 mm), it can be used for shallow wells within 250 m of the job; when using YHK-4 armored four-core cable (4.76 mm), it can be used within 1500 m the deep job.

2. The winch use the mechanical chain drive, the structure is compact, use the frequency converter to control the motor speed, realize stepless speed regulation.

3. The winch collector rings with four core output can be used to detect a variety of logging and transmission of technical data.

4. The winch mainly made by the rack, roller, motor, reducer, control boxes and other components, with small size, light weight, easy to operate and so on the characteristic.

The maximum logging depth	WTQEF seven-core rubber cable Φ11.3 mm when, 250m;
The maximum logging depth	When YHK-4 armored four-core cable Φ4.76 mm, 1500m;
The maximum lifting capacity	100kg
The maximum lifting speed	1500 m / h
The motor speed range	(0 ~ 1400) r / min
The drum diameter	112 mm
Equipped with cable (The user to match)	WTQEF seven-core rubber cable Φ11.3 mm
Equipped with cable (The user to match)	YHK-4 armored four-core cable Φ4.76 mm
With motor	three-phase induction motor
Speed	1400 r/min
Power	1100w
Equipped with speed reducer	Modulus: 2.5
Reduction ratio	40: 1
Transmission chain pitch	13mm
Dimensions	125cm × 67cm × 75cm
Power supply	AC220V ± 10%, 50Hz
Winch weight	85kg (without cable)

Continuously Variable Winch JC-2A
