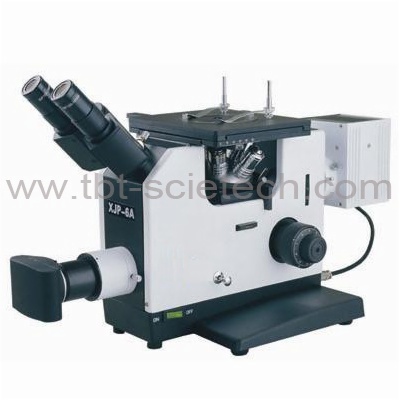

XJP-6/6A Metallurgical Microscope
Description:
|
Wild-field eyepieces ............................WF10X WF12.5X
Illumination
............ 6V 30W halogen lamp with adjustable brightness
Polarizer attachment
Mechanical stage............ X-Y travel range 75mm x 50mm
Optional accessories
1) Plan achromatic objectives
..................................... PL2.5/0.07 PL4/0.10 PL20/0.35
2) Reticule eyepiece ......................WF10X (0.1mm/division)
3) Micrometer......................................... (0.01mm/division)
4) Photo eyepieces ................................S5X S6.3X S0.65X
5) 35mm photo attachment ..........Photo size 24mm x 36mm
6) 6 x 8cm photo set ...................Photo size 54mm
|
XJP-6.XJP-6A Standard Outfits
Order No.
|
Item
|
Standard Outfits
|
XJP-6
|
XJP-6A
|
|
Main Body
|
●
|
●
|
S09
|
Mechanical stage with a stroke of 75 by 50 and size of 180 by 155
|
●
|
●
|
EP10
|
Plan eyepiece 10X-18
|
●●
|
●●
|
EP12.5
|
Plan eyepiece 12.X-14
|
●●
|
●●
|
EH5
|
Huygenian ocular 5X-20
|
○○
|
○○
|
EW10
|
Plan eyepiece 10X-20
|
○○
|
○○
|
Epr10b
|
Plan reticle eyepiece 10X-14
|
●
|
●
|
B-OAr4
|
Achroment objective 4/0.10
|
●
|
|
M-OAr10
|
Achroment objective 10/0.25
|
●
|
|
M-OSPr40
|
S-plan achromat objective 40/0.65
|
●
|
|
M-OAor100
|
Achromat objective 100/1.25 oil
|
●
|
|
B-OPr2.5
|
Plan achromat objective 2.5/0.07
|
○
|
○
|
B-OPr4
|
Plan achromat objective 4/0.10
|
|
○
|
M-OPr10
|
Plan achromat objective 10/0.25
|
|
●
|
M-OPr20
|
Plan achromat objective 20/0.35
|
○
|
●
|
M-OPr40a
|
Plan achromat objective 40/0.65
|
|
●
|
M-OSPor100
|
S-plan achromat objective 100/1.25 oil
|
|
●
|
9J-6
|
Stage plate (1)
|
●
|
●
|
9J-7
|
Stage plate (2)
|
●
|
●
|
9J-8
|
Stage plate (3)
|
●
|
●
|
9J-9
|
Stage plate (4)
|
○
|
○
|
9J.11
|
Stage plate holder
|
●
|
●
|
TBR03
|
Rotating binocular head (45 degree)
|
●
|
●
|
LH01
|
Lamp housing
|
●
|
●
|
|
Halogen lamp 6V30W
|
●●
|
●●
|
PO02
|
Polarizer
|
●
|
●
|
PA01
|
Analyzer
|
●
|
●
|
CL02
|
Specimen clamps
|
●
|
●
|
9J.7
|
Photo adaptor
|
○
|
○
|
EPHp5
|
Photo eyepiece S5x
|
○
|
○
|
EPHp6.3
|
Photo eyepiece S6.3X
|
○
|
○
|
EPHp0.65
|
Video eyepiece 0.65X
|
○
|
○
|
|
Metallurgical Microphotography equipments
|
○
|
○
|
|
35mm DF camera with shutter release
|
○
|
○
|
SC03
|
Specimen holder
|
○
|
○
|
|
Stage micrometer (division 0.01mm)
|
○
|
○
|
Note:“●”in the table is standard attachment. “○”is optional accessories.
Design change:To keep pace with technological advance ,we have reserved
the right to make design modifications and changes without notice.
